作者：维尔克斯 时间：2025-8-25 10:56:22
Ushio Inc.是一家拥有40余年行业经验的光子学企业。公司提供波长覆盖375nm至850nm的多种激光二极管，广泛应用于显示器、医疗设备、工业工具（如传感器和调平仪）以及打印机等领域。Ushio提供的TO封装激光二极管，半导体激光器，有单模和多模激光，波长覆盖375~850nm，输出功率5mW~16W。以HL40041MG为例，这个Laser Diode型号是TO封装激光二极管，450nm波长、输出功率150mW。适用于医疗、生物、测量等行业应用。

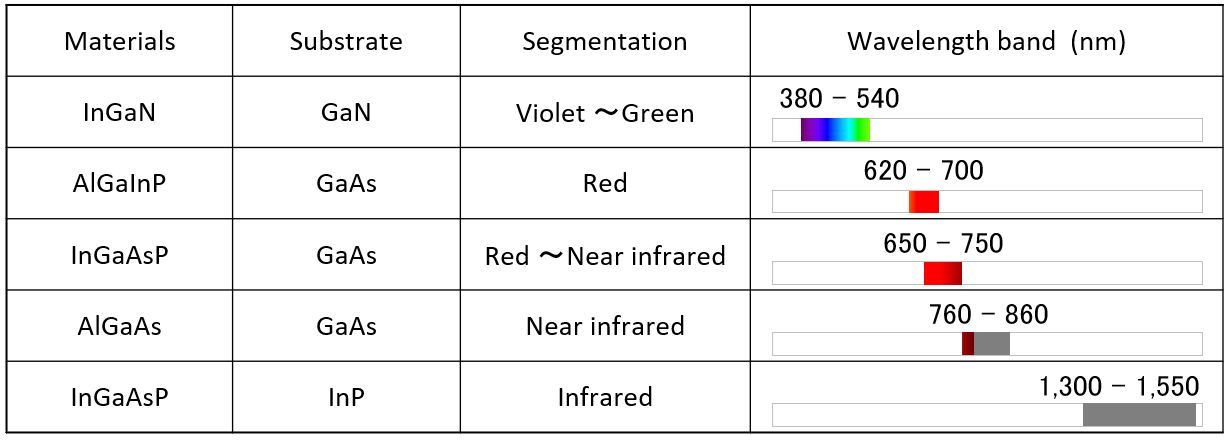

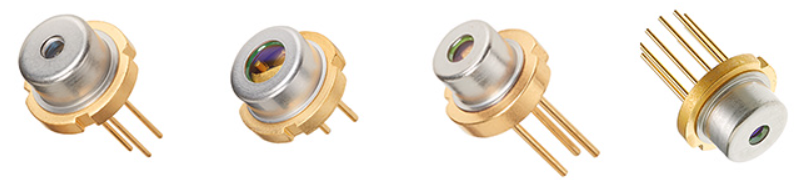

HL40041MG TO封装激光二极管特征
-工作温度：-10-+50°C
-光输出功率：150mW（CW）
-紫激光：典型波长404nm。
-低工作电压：最大5.0V。
-包装：5.6mm
-多横模
-TE模式振荡
Laser Diode光学参数
|
参数 |
符号 |
最小值 |
典型值 |
最大值 |
单位 |
测试条件 |
|
阈值电流 |
Ith |
- |
60 |
120 |
mA |
- |
|
工作电流 |
Iop |
- |
150 |
250 |
mA |
Po=150mW |
|
工作电压 |
Vop |
- |
- |
5.0 |
V |
Po=150mW |
|
平行于结的光束发散角 |
θ// |
5 |
13 |
25 |
° |
Po=150mW, Full angle 1/e² |
|
垂直于结的光束发散角 |
θ⊥ |
30 |
45 |
60 |
° |
Po=150mW, Full angle 1/e² |
|
激光波长 |
λp |
398 |
404 |
410 |
nm |
Po=150mW |
|
监控电流 * |
Is |
0.05 |
0.20 |
0.50 |
mA |
Po=150mW, VR(PD)=5V |
以HL40041MG为例，这个Laser Diode型号是TO封装激光二极管，半导体激光器，450nm波长、输出功率150mW。适用于医疗、生物、测量等行业应用。
镭射管应用
-传感测量
-医疗保健
-生命科学
-光刻
-展示娱乐
-量子技术
-AR/VR
镭射管最大额定参数
|
项目 |
符号 |
额定值 |
单位 |
|
光学输出功率 |
Po |
150 |
mW |
|
激光二极管反向电压 |
VR(LD) |
2 |
V |
|
光电二极管反向电压 * |
VR(PD) |
20 |
V |
|
工作温度 |
Topr |
-10 ~ +50 |
℃ |
|
存储温度 |
Tstg |
-40 ~ +85 |
℃ |
*仅在初始化检查检测PD

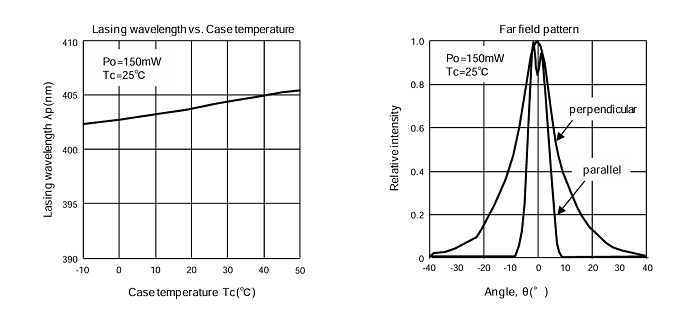

Laser Diode特性曲线

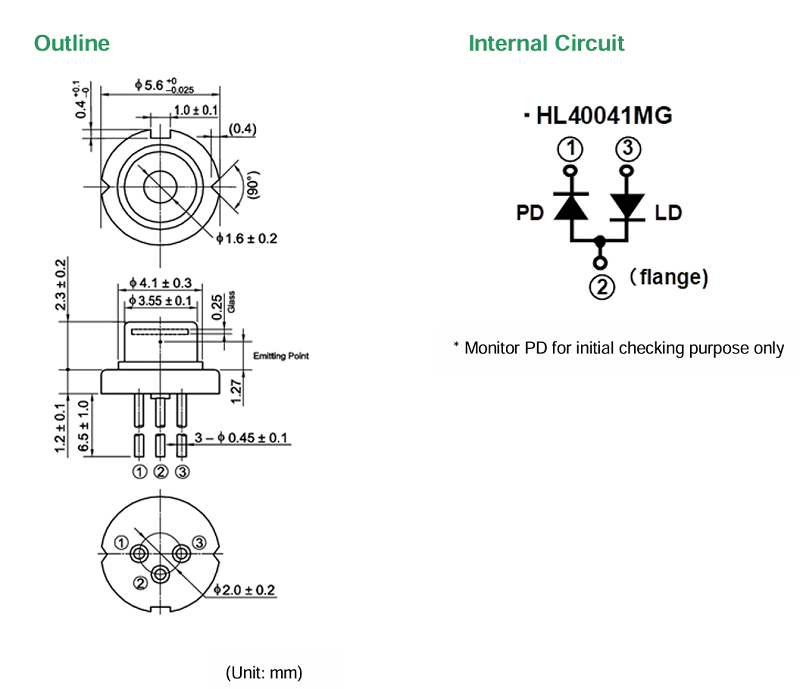

图纸
型号列表
※1：多横模（不带*1的产品为单模）
Po（*）：脉冲条件下的光输出功率：请详细参考规格表。
|
PN |
波长 nm |
输出功率 mW |

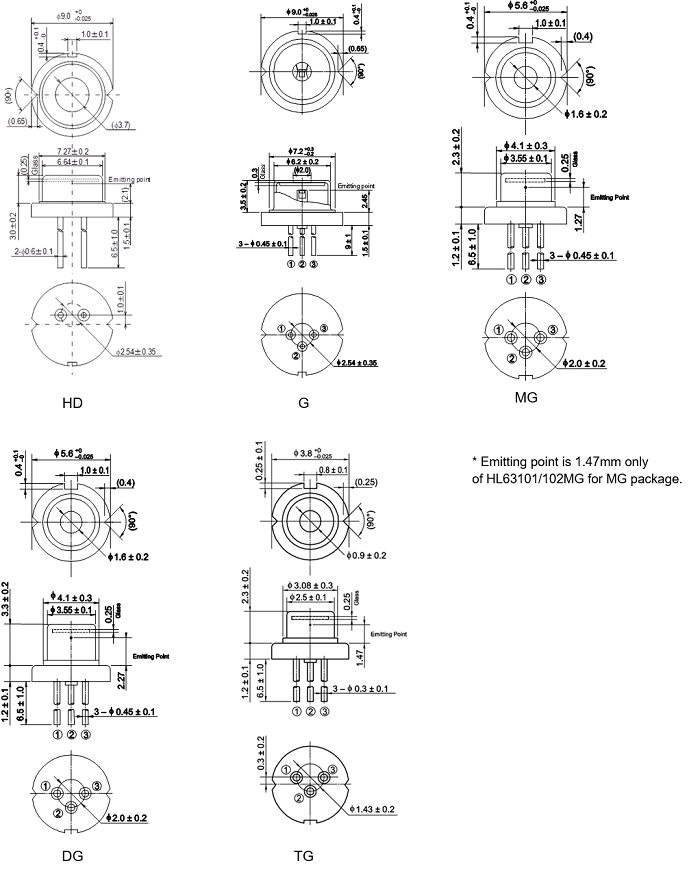

封装 φmm |
内部电路 |
运行温度 ℃ |
阈值电流 mA |
运行电流 mA |
运行电压 V |
光束发散 平行度° |
光束发散 垂直度° |
监控电流 mA |
|
HL40041MG※1 |
404 |
150 |
MG(φ5.6) |
CC |
-10~50 |
60 |
150 |
5.0 max |
13 |
45 |
0.2 |
|
HL40093MG※1 |
404 |
400 |
MG(φ5.6) |
FN |
0~30 |
110 |
370 |
4.9 max |
13 |
42 |
|
|
HL40071MG |
405 |
300 |
MG(φ5.6) |
CC |
0~70 |
50 |
280 |
6 |
6 |
15 |
0.09 |
|
HL40161MG |
405 |
175 |
MG(φ5.6) |
CC |
-5~85 |
35 |
150 |
5 |
9 |
20 |
|
|
HL40162MG |
405 |
175 |
MG(φ5.6) |
AC |
-5~85 |
35 |
150 |
5 |
9 |
20 |
|
|
HL40163MG |
405 |
175 |
MG(φ5.6) |
FN |
-5~85 |
35 |
150 |
5 |
9 |
20 |
|
|
HL40211MG |
405 |
400 |
MG(φ5.6) |
CC |
-5~85 |
40 |
250 |
5.5 |
8 |
20 |
-0.3 |
|
HL40173MG※1 |
405 |
600 |
MG(φ5.6) |
FN |
0~30 |
110 |
450 |
4.2 |
13 |
42 |
|
|
HL40175MG※1 |
405 |
600 |
MG(φ5.6) |
BC |
0~30 |
110 |
450 |
4.2 |
13 |
42 |
2 |
|
HL40033G※1 |
405 |
1,000 |
G(φ9.0) |
FN |
0~30 |
320 |
1,000 |
5.0 max |
13 |
42 |
|
|
HL40085G※1 |
405 |
1,000 |
G(φ9.0) |
BC |
0~30 |
320 |
1,000 |
5.0 max |
13 |
42 |
1.3 |
|
HL40213MG |
405 |
400 |
MG(φ5.6) |
FN |
-5~85 |
40 |
250 |
5.5 |
8 |
20 |
|
|
HL63703HD※1 |
630 |
1,200 |
HD(φ9.0) |
FN |
-10~25 |
440 |
1,550 |
2.4 |
10 |
32 |
|
|
HL63163DG |
633 |
100 |
DG(φ5.6) |
FN |
-10~40 |
70 |
170 |
2.6 |
8.5 |
18 |
|
|
HL63713HD※1 |
635 |
1,200 |
HD(φ9.0) |
FN |
-10~45 |
340 |
1,350 |
2.3 |
10 |
33 |
|
|
HL63102MG |
637 |
5 |
MG(φ5.6) |
AC |
-10~60 |
15 |
20 |
2.2 |
8 |
34 |
0.2 |
|
HL63142DG |
637 |
100 |
DG(φ5.6) |
AC |
-10~50 |
50 |
140 |
2.7 |
8 |
18 |
0.3 |
|
HL63283HD※1 |
637 |
1,200 |
HD(φ9.0) |
FN |
-10~45 |
340 |
1,300 |
2.3 |
10 |
33 |
|
|
NRNDHL6312G-A |
638 |
5 |
G(φ9.0) |
AC |
-10~50 |
45 |
55 |
2.7 max |
8 |
31 |
0.4 |
|
NRNDHL6319G-A |
638 |
10 |
G(φ9.0) |
CC |
-10~50 |
50 |
70 |
2.7 max |
8 |
31 |
0.17 |
|
NRNDHL6320G-A |
638 |
10 |
G(φ9.0) |
AC |
-10~50 |
50 |
70 |
2.7 max |
8 |
31 |
0.17 |
|
NRNDHL6321G-A |
638 |
15 |
G(φ9.0) |
CC |
-10~50 |
55 |
85 |
2.7 max |
8 |
30 |
0.2 |
|
NRNDHL6322G-A |
638 |
15 |
G(φ9.0) |
AC |
-10~50 |
55 |
85 |
2.7 max |
8 |
30 |
0.2 |
|
HL63133DG |
638 |
170 |
DG(φ5.6) |
FN |
-10~40 |
60 |
250 |
2.8 |
9 |
17 |
|
|
HL63192DG※1 |
638 |
700 |
DG(φ5.6) |
AC |
-10~40 |
200 |
820 |
2.2 |
9 |
35 |
2 |
|
HL63193MG※1 |
638 |
700 |
MG(φ5.6) |
FN |
-10~40 |
200 |
820 |
2.2 |
9 |
35 |
|
|
HL63373HD※1 |
638 |
1,000 |
HD(φ9.0) |
FN |
-10~45 |
200 |
1,000 |
2.4 |
10 |
35 |
|
|
HL63623HD※1 |
638 |
1,500 |
HD(φ9.0) |
FN |
-10~55 |
420 |
1,550 |
2.25 |
10 |
33 |
|
|
NRNDHL63520HD※1 |
638 |
2,400 |
HD(φ9.0) |
FN |
-10~55 |
570 |
2,400 |
2.4 |
10 |
33 |
|
|
HL63680HD※1 |
638 |
3,000 |
HD(φ9.0) |
FN |
-10~55 |
570 |
3,000 |
2.5 |
12 |
30 |
|
|
HL6358MG-A |
639 |
10 |
MG(φ5.6) |
AC |
-10~50 |
30 |
40 |
2.3 |
8 |
21 |
1 |
|
HL6395MG-A |
639 |
10 |
MG(φ5.6) |
CC |
-10~60 |
45 |
55 |
2.3 |
9 |
21 |
0.07 |
|
HL6360MG-A |
639 |
20 |
MG(φ5.6) |
AC |
-10~50 |
45 |
65 |
2.5 max |
9 |
21 |
0.2 |
|
HL6361MG-A |
639 |
20 |
MG(φ5.6) |
CC |
-10~50 |
45 |
65 |
2.5 max |
9 |
21 |
0.2 |
|
NRNDHL6397MG-A |
639 |
20 |
MG(φ5.6) |
CC |
-10~60 |
45 |
65 |
2.3 |
9 |
21 |
0.2 |
|
NRNDHL6323MG-A |
639 |
30 |
MG(φ5.6) |
AC |
-10~50 |
45 |
95 |
2.3 |
8.5 |
30 |
0.15 |
|
NRNDHL63391DG |
639 |
200 |
DG(φ5.6) |
CC |
-10~60 |
65 |
255 |
2.8 |
8.5 |
14 |
0.8 |
|
NRNDHL63392DG |
639 |
200 |
DG(φ5.6) |
AC |
-10~60 |
65 |
255 |
2.8 |
8.5 |
14 |
0.8 |
|
HL63641DG |
639 |
200 |
DG(φ5.6) |
CC |
-40~60 |
50 |
225 |
2.7 |
8 |
14 |
0.25 |
|
HL63642DG |
639 |
200 |
DG(φ5.6) |
AC |
-40~60 |
50 |
225 |
2.7 |
8 |
14 |
0.25 |
|
HL63643DG |
639 |
200 |
DG(φ5.6) |
FN |
-40~60 |
50 |
225 |
2.7 |
8 |
14 |
- |
|
HL6362MG-A |
640 |
40 |
MG(φ5.6) |
AC |
-10~50 |
45 |
90 |
2.4 |
10 |
21 |
0.3 |
|
HL6363MG-A |
640 |
40 |
MG(φ5.6) |
CC |
-10~50 |
45 |
90 |
2.4 |
10 |
21 |
0.3 |
|
HL63653TG |
640 |
200 |
TG(φ3.8) |
FN |
-10~60 |
50 |
230 |
2.7 |
8 |
14 |
|
|
NRNDHL6364DG-A |
642 |
60 |
DG(φ5.6) |
AC |
-10~50 |
65 |
125 |
2.5 |
10 |
21 |
0.4 |
|
HL6366DG-A |
642 |
80 |
DG(φ5.6) |
AC |
-10~50 |
80 |
155 |
2.5 |
10 |
21 |
0.3 |
|
HL6367DG-A |
642 |
80 |
DG(φ5.6) |
CC |
-10~50 |
80 |
155 |
2.5 |
10 |
21 |
0.3 |
|
NRNDHL6385DG-A |
642 |
150 |
DG(φ5.6) |
LN |
-10~40 |
110 |
280 |
2.6 |
9 |
17 |
|
|
HL63723DG |
642 |
200 |
DG(φ5.6) |
FN |
-40~85 |
55 |
235 |
2.7 |
8 |
15 |
|
|
HL65293HD※1 |
652 |
1,200 |
HD(φ9.0) |
FN |
-10~45 |
400 |
1350 |
2.25 |
10 |
32 |
|
|
NRNDHL6501MG-A |
658 |
30 |
MG(φ5.6) |
CC |
-10~60 |
45 |
85 |
2.6 |
8.5 |
22 |
0.3 |
|
HL65261MG |
658 |
80 (*300) |
MG(φ5.6) |
CC |
-10~60*-10~75 |
30 |
90 |
2.6 |
7.5 |
15 |
0.6 |
|
HL65262MG |
658 |
80 (*300) |
MG(φ5.6) |
AC |
-10~60*-10~75 |
30 |
90 |
2.6 |
7.5 |
15 |
0.6 |
|
HL65263MG |
658 |
80 (*300) |
MG(φ5.6) |
FN |
-10~60*-10~75 |
30 |
90 |
2.6 |
7.5 |
15 |
|
|
HL65264MG |
658 |
80 (*300) |
MG(φ5.6) |
LN |
-10~60*-10~75 |
30 |
90 |
2.6 |
7.5 |
15 |
|
|
HL65213HD※1 |
659 |
1,200 |
HD(φ9.0) |
FN |
-10~45 |
450 |
1,350 |
2.3 |
10 |
33 |
|
|
NRNDHL6544FM-A |
660 |
50 |
MG(φ5.6) |
FN |
-10~75 |
60 |
115 |
2.3 |
10 |
17 |
|
|
HL6545MG-A |
660 |
120 |
MG(φ5.6) |
LN |
-10~75 |
60 |
175 |
2.5 |
10 |
17 |
|
|
HL65051DG |
660 |
120 |
DG(φ5.6) |
CC |
-10~60 |
60 |
175 |
2.5 |
10 |
17 |
0.4 |
|
HL65055DG |
660 |
120 |
DG(φ5.6) |
BC |
-10~60 |
60 |
175 |
2.5 |
10 |
17 |
0.4 |
|
HL65221DG |
660 |
200 |
DG(φ5.6) |
CC |
-10~75 |
60 |
230 |
2.7 |
8 |
15 |
0.7 |
|
HL65222DG |
660 |
200 |
DG(φ5.6) |
AC |
-10~75 |
60 |
230 |
2.7 |
8 |
15 |
0.7 |
|
HL65223DG |
660 |
200 |
DG(φ5.6) |
FN |
-10~75 |
60 |
230 |
2.7 |
8 |
15 |
|
|
HL65232DG |
660 |
150 |
DG(φ5.6) |
AC |
-10~75 |
60 |
190 |
2.55 |
7.5 |
15 |
0.55 |
|
HL65241DG |
660 |
100 |
DG(φ5.6) |
CC |
-10~90 |
60 |
145 |
2.45 |
7 |
15 |
0.35 |
|
HL65242DG |
660 |
100 |
DG(φ5.6) |
AC |
-10~90 |
60 |
145 |
2.45 |
7 |
15 |
0.35 |
|
HL65312MG |
662 |
10 |
MG(φ5.6) |
AC |
-40~90 |
10 |
20 |
2.2 |
7 |
30 |
0.4 |
|
HL65311MG |
662 |
10 |
MG(φ5.6) |
CC |
-40~90 |
10 |
20 |
2.2 |
7 |
30 |
0.4 |
|
HL65303HD※1 |
665 |
1,200 |
HD(φ9.0) |
FN |
-10~55 |
370 |
1350 |
2.25 |
10 |
32 |
|
|
NRNDHL6714G-A |
670 |
10 |
G(φ9.0) |
AC |
-10~50 |
30 |
50 |
2.7 max |
8 |
22 |
0.9 |
|
NRNDHL6748MG-A |
670 |
10 |
MG(φ5.6) |
AC |
-10~60 |
20 |
30 |
2.2 |
8 |
25 |
1 |
|
HL67192MG |
670 |
15 |
MG(φ5.6) |
AC |
-10~70 |
15 |
30 |
2.25 |
7.5 |
24 |
1.5 |
|
HL67011DG |
671 |
200 |
DG(φ5.6) |
CC |
-10~75 |
50 |
210 |
2.7 |
8 |
15 |
0.8 |
|
HL67001DG |
675 |
200 |
DG(φ5.6) |
CC |
-10~75 |
55 |
215 |
2.7 |
8 |
15 |
0.8 |
|
HL67203HD※1 |
675 |
1,200 |
HD(φ9.0) |
FN |
-10~75 |
350 |
1,350 |
2.2 |
11 |
32 |
|
|
HL67221DG |
680 |
200 |
DG(φ5.6) |
CC |
-10~75 |
50 |
210 |
2.7 |
8 |
15 |
0.8 |
|
HL67213HD※1 |
683 |
1,200 |
HD(φ9.0) |
FN |
-10~75 |
320 |
1,350 |
2.2 |
11 |
32 |
|
|
HL6750MG-A |
685 |
50 |
MG(φ5.6) |
CC |
-10~70 |
30 |
75 |
2.3 |
9 |
21 |
0.12 |
|
NRNDHL6738MG-A |
690 |
30 |
MG(φ5.6) |
CC |
-10~70 |
45 |
90 |
2.5 |
8.5 |
19 |
0.1 |
|
HL69203HD※1 |
690 |
1,200 |
HD(φ9.0) |
FN |
-10~75 |
350 |
1,300 |
2.2 |
11 |
32 |
|
|
HL69001DG |
690 |
200 |
DG(φ5.6) |
CC |
-10~75 |
50 |
220 |
2.7 |
8 |
15 |
0.8 |
|
HL69001DG89 |
689 |
200 |
DG(φ5.6) |
CC |
-10~75 |
50 |
220 |
2.7 |
8 |
15 |
0.8 |
|
HL70021DG |
700 |
200 |
DG(φ5.6) |
CC |
-10~75 |
50 |
225 |
2.7 |
8 |
15 |
0.8 |
|
HL70031DG |
705 |
200 |
DG(φ5.6) |
CC |
-10~75 |
50 |
235 |
2.8 |
8 |
15 |
0.8 |
|
HL7301MG-A |
730 |
40 |
MG(φ5.6) |
CC |
-10~60 |
30 |
75 |
2.5 |
9 |
18 |
0.3 |
|
HL7302MG-A |
730 |
40 |
MG(φ5.6) |
AC |
-10~60 |
30 |
75 |
2.5 |
9 |
18 |
0.3 |
|
HL78002MG |
785 |
200 |
MG(φ5.6) |
AC |
-10~75 |
45 |
230 |
2.8 |
8.5 |
15 |
0.5 |
|
NRNDHL83013MG |
830 |
50 |
MG(φ5.6) |
FN |
-10~60 |
20 |
75 |
1.9 |
9 |
22 |
|
|
NRNDHL8337MG-A |
830 |
50 |
MG(φ5.6) |
AC |
-10~60 |
20 |
75 |
1.9 |
9 |
22 |
0.25 |
|
NRNDHL8338MG-A |
830 |
50 |
MG(φ5.6) |
CC |
-10~60 |
20 |
75 |
1.9 |
9 |
22 |
0.25 |
|
HL85021MG |
850 |
250 |
MG(φ5.6) |
CC |
-40~75 |
45 |
270 |
2.6 |
8 |
15 |
1.4 |
|
HL85022MG |
850 |
250 |
MG(φ5.6) |
AC |
-40~75 |
45 |
270 |
2.6 |
8 |
15 |
1.4 |
|
HL85023MG |
850 |
250 |
MG(φ5.6) |
FN |
-40~75 |
45 |
270 |
2.6 |
8 |
15 |
|
|
NRNDHL8340MG-A |
852 |
50 |
MG(φ5.6) |
AC |
-10~60 |
20 |
75 |
1.9 |
9 |
22 |
0.25 |
|
NRNDHL8341MG-A |
852 |
50 |
MG(φ5.6) |
CC |
-10~60 |
20 |
75 |
1.9 |
9 |
22 |
0.25 |
|
HL67231DG (AR coated） |
671 |
200 |
DG(φ5.6) |
CC |
-10~75 |
60 |
240 |
2.7 |
8 |
15 |
- |
|
HL69021DG (AR coated） |
689 |
200 |
DG(φ5.6) |
CC |
-10~75 |
60 |
240 |
2.7 |
8 |
15 |
- |
|
HL70041DG (AR coated) |
698 |
200 |
DG(φ5.6) |
CC |
-10~75 |
60 |
260 |
2.7 |
8 |
15 |
- |
|
HL63300BR |
636 |
16,000 |
Bar(40emitter) |
- |
5~20 |
8,000 |
22,000 |
2.2 |
9 |
35 |
- |
|
HL65100BR |
659 |
16,000 |
Bar(40emitter) |
- |
5~20 |
8,000 |
22,000 |
2.2 |
9 |
35 |
- |
|
HL67170BR |
675 |
16,000 |
Bar(40emitter) |
- |
5~20 |
8,000 |
22,000 |
2.2 |
9 |
35 |
- |
|
HL69010BR |
690 |
16,000 |
Bar(40emitter) |
- |
5~20 |
8,000 |
22,000 |
2.2 |
9 |
35 |
- |
封装图纸
