作者：维尔克斯 时间：2025-8-26 3:05:10
超窄线宽线激光模组（LINEMAN）是一种创新的一字线模组模块，集成了半导体激光器和高精度模压透镜。专利成型技术使LINEMAN能够使超窄线宽线激光模组输出可重复和均匀的线条，并最大限度地减少线条变化，这与传统的Powell镜片不同。以超紧凑的封装提供一字线模组，外壳直径小至6.5毫米，4um线宽。

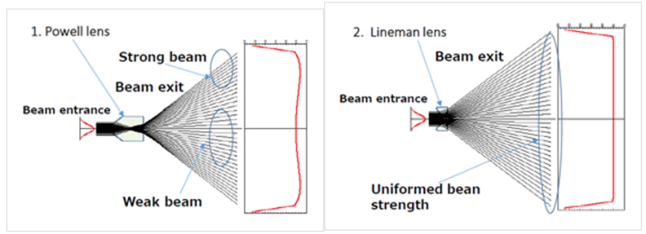

重复性好。Powell透镜在激光进入的地方有一个陡峭的凸起，周围的弯曲区域会影响线条的均匀性。该周围区域通常由人手抛光，这可能会导致线条变化和不一致。另一方面，LINEMAN镜头采用我们的成型技术生产，具有非常平缓的曲线，使线条均匀且可重复，这与手工制作的Powell镜头不同。
我司正式推出覆盖405nm至780nm可见光波段的超窄线宽激光模组系列。该系列产品提供从1mW到0.5W的多样化输出功率选择，并包含一字线与点激光两种模组形态，以灵活适应不同应用场景。例如，APCD-635-06-C2-TM型号提供1mW稳定输出，而ADL-80V03TL（808nm）则可实现高达0.5W的输出功率。这些一字线激光头模组采用紧凑且耐用的TO封装设计，并集成了先进的自动功率控制（APC）技术，确保一字线激光头在各种工作条件下的稳定性和可靠性。

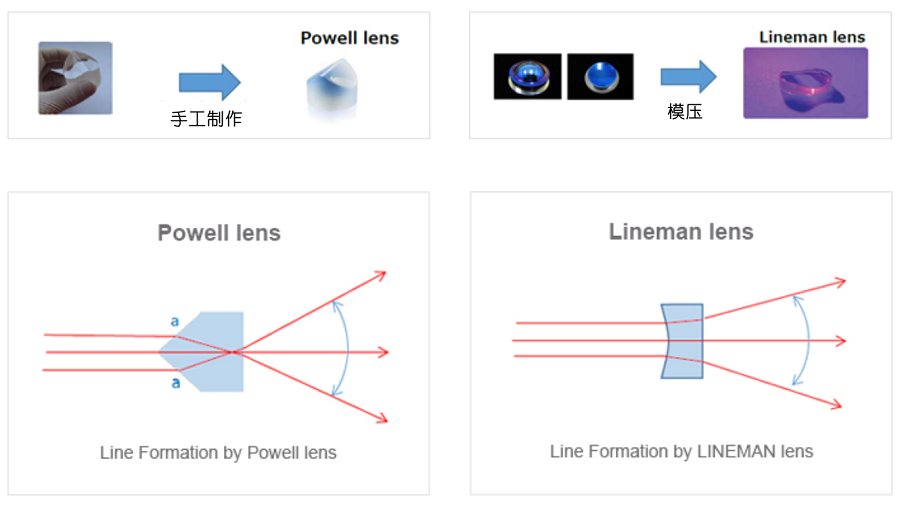

均匀性好。Powell透镜通常用于许多线发生器模块。Powell透镜的形状通常使用多项式的二次近似值来确定。Powell透镜中使用的技术倾向于在两端产生强烈的光束分布，如果试图通过抑制端部强度来平衡光束，则会在中心产生凹陷）。正如人们所看到的，由于近似，理论上不可能使用Powell透镜创建完全均匀的线。除了这一理论，还有其他负面因素需要考虑，如激光束角度和透镜形状的不一致性。
总之，这会导致线性激光模组生产更加不一致，生产良率降低。另一方面，LINEMAN镜头是在没有数字积分的情况下生产的。理论上，LINEMAN透镜技术可以产生100%的平顶光束强度（见图2），消除不一致，提高生产良率。
小封装：使用独特的组装技术提供业界最小的φ6.5mm封装一字线激光头在线生成模块，尽管大多数制造商通常提供φ18mm封装。这种独特的封装工艺不仅提供了最小的封装，还支持了许多生产线模块中常见的散热问题。高功率激光器提供φ8mm封装，我们将继续寻求新技术以跟上小型化的趋势。
紧凑型封装线性激光模组可以与APC电路和TTL信号输入电路集成。
外壳选项（提供各种可调节外壳）
以ALM-405150-AAF001为例，这个型号是405nm波长，直径8mm的紫光4um线宽超细线激光模组。
超细线激光模组最大额定参数
|
参数 |
符号 |
额定值 |
单位 |
|
电源电压 |
Vcc |
2 |
V |
|
激光模块光学输出功率 |
Po |
50 |
mW |
|
工作温度 |
Topr |
-10-50 |
℃ |
|
存储温度 |
Tstg |
-20-60 |
℃ |
4um线宽激光模组光学参数
|
参数 |
最小值 |
典型值 |
最大值 |
单位 |
|
波长 |
400 |
405 |
410 |
nm |
|
扇形角 |
|
10 |
|
° |
|
焦距 |
|
12 |
|
Mm |
|
线长 |
|
3.1 |
|
|
|
输出功率 |
|
|
45 |
mW |
|
操作电压 |
8 |
8 |
8.5 |
V |
|
操作电流 |
|
150 |
189 |
mA |
|

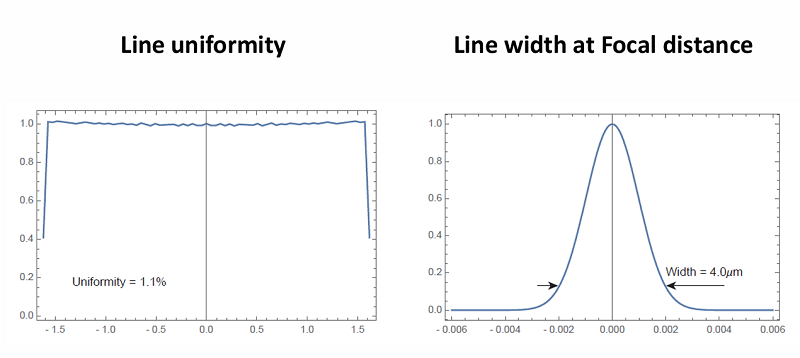

线宽@12mm(1/e2) |
|
4
|
|
μm |
|
一致性 |
|
|
|
5% |
|
准直 |
|
|
|
0.1% |

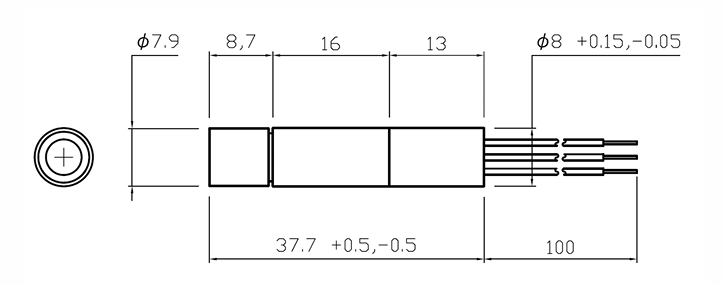

超细线激光模组尺寸（mm）
超细线激光模组选型表格
|
波长 (nm) |
PN |
输出功率(mW) |
工作电流(mA) |
尺寸(mm) |
|
405 |
AML-L115-405001-01 |
1 |
200 |
Dia 11.7x30 |
|
405 |
AML-D120-405001-01 |
1 |
200 |
Dia 12x38 |
|
405 |
AML-D105-405001-01 |
1 |
200 |
Dia 10.5x15.3 |
|
405 |
AML-D080-405001-01 |
1 |
200 |
Dia 8.0x15.3 |
|
405 |
AML-D120-405003-01 |
3 |
200 |
Dia 12x38 |
|
405 |
AML-D105-405003-01 |
3 |
200 |
Dia 10.5x15.3 |
|
405 |
AML-D080-405003-01 |
3 |
200 |
Dia 8.0x15.3 |
|
405 |
AML-L115-405005-01 |
5 |
200 |
Dia 11.7x30 |
|
405 |
AML-D200-405005-01 |
5 |
200 |
Dia 12x38 |
|
405 |
AML-D120-405005-01 |
5 |
200 |
Dia 12x38 |
|
405 |
AML-D105-405005-01 |
5 |
200 |
Dia 10.5x15.3 |
|
405 |
AML-D080-405005-02 |
5 |
200 |
Dia 8.0x15.3 |
|
405 |
AML-D200-405010-01 |
10 |
200 |
Dia 12x38 |
|
450 |
AML-L115-450001-01 |
1 |
200 |
Dia 11.7x30 |
|
450 |
AML-D120-450001-01 |
1 |
200 |
Dia 12x38 |
|
450 |
AML-D105-450001-01 |
1 |
200 |
Dia 10.5x15.3 |
|
450 |
AML-D080-450001-01 |
1 |
200 |
Dia 8.0x15.3 |
|
450 |
AML-D120-450003-01 |
3 |
200 |
Dia 12x38 |
|
450 |
AML-D105-450003-01 |
3 |
200 |
Dia 10.5x15.3 |
|
450 |
AML-D080-450003-01 |
3 |
200 |
Dia 8.0x15.3 |
|
450 |
AML-D080-450005-01 |
5 |
200 |
Dia 8.0x15.3 |
|
450 |
AML-L115-450005-01 |
5 |
200 |
Dia 11.7x30 |
|
450 |
AML-D200-450005-01 |
5 |
200 |
Dia 20x38 |
|
450 |
AML-D120-450005-01 |
5 |
200 |
Dia 12x38 |
|
450 |
AML-D105-450005-01 |
5 |
200 |
Dia 10.5x15.3 |
|
450 |
AML-D080-450005-02 |
5 |
200 |
Dia 8.0x15.3 |
|
450 |
AML-L115-450010-01 |
10 |
200 |
Dia 11.7x30 |
|
450 |
AML-D200-450010-01 |
10 |
200 |
Dia 20x38 |
|
450 |
AML-D120-450010-01 |
10 |
220 |
Dia 12x38 |
|
450 |
AML-D105-450010-01 |
10 |
220 |
Dia 10.5x15.3 |
|
450 |
AML-D080-450010-01 |
10 |
220 |
Dia 8.0x15.3 |
|
450 |
AML-D200-450015-01 |
15 |
200 |
Dia 20x38 |
|
450 |
AML-D200-450020-01 |
20 |
250 |
Dia 20x38 |
|
450 |
AML-D120-450020-01 |
20 |
250 |
Dia 12x38 |
|
450 |
AML-D200-450030-01 |
30 |
250 |
Dia 20x38 |
|
450 |
AML-D200-450040-01 |
40 |
250 |
Dia 20x38 |
|
450 |
AML-D200-450050-01 |
50 |
250 |
Dia 20x38 |
|
520 |
APCD-515-03-C2-TM |
1 |
100 |
Dia 8x15.5 |
|
520 |
APCD-515-07-C2-TM |
1 |
100 |
Dia 3.3x8 |
|
520 |
APCL-515-01-C2-TM |
1 |
100 |
Dia11.5x30 |
|
520 |
APCD-515-01-C2-TM |
1 |
100 |
Dia 4x8.5 |
|
520 |
APCD-515-03-C3-TM |
3 |
100 |
Dia 8x15.5 |
|
520 |
APCL-515-01-C3-TM |
3 |
100 |
Dia11.5x30 |
|
520 |
APCD-515-01-C3-TM |
3 |
100 |
Dia 4x8.5 |
|
520 |
APCD-515-03-05-TM |
5 |
100 |
Dia 8x15.5 |
|
635 |
APCD-635-06-C2-TM |
1 |
32 |
Dia 6.5x8.5 |
|
635 |
APCD-635-01-C2-TM |
1 |
32 |
Dia 4x8.5 |
|
635 |
APCD-635-D1-C2-XX |
1 |
40 |
Dia 4.0x9 |
|
635 |
APCL-635-01-C2 |
1 |
40 |
Dia 11.7x30 |
|
635 |
APCD-635-12-C2 |
1 |
40 |
Dia 10.5x15.5 |
|
635 |
APCD-635-07-C2 |
1 |
35 |
Dia 3.3x7 |
|
635 |
APCD-635-06-C2 |
1 |
35 |
Dia 6.5x8.5 |
|
635 |
APCD-635-05-C2 |
1 |
40 |
Dia 10.5x14.5 |
|
635 |
APCD-635-04-C2 |
1 |
40 |
Dia 10.5x14.5 |
|
635 |
APCD-635-03-C2 |
1 |
40 |
Dia 8.0x12.5 |
|
635 |
APCD-635-02-C2 |
1 |
40 |
Dia 6.2x11.5 |
|
635 |
APCD-635-01-C2 |
1 |
35 |
Dia 4.0x8.5 |
|
635 |
APFD-635-02-C3-TA |
3 |
40 |
Dia10x26.5 |
|
635 |
APCD-635-D1-C3-XX |
3 |
50 |
Dia 4.0x9 |
|
635 |
APCL-635-CW03 |
3 |
50 |
Dia 9.0x16.5 |
|
635 |
APCL-635-WP03 |
3 |
50 |
Dia 6.0x16.5 |
|
635 |
APCL-635-01-C3 |
3 |
50 |
Dia 11.7x30 |
|
635 |
APCD-635-12-C3 |
3 |
50 |
Dia 10.5x15.5 |
|
635 |
APCD-635-07-C3 |
3 |
35 |
Dia 3.3x7 |
|
635 |
APCD-635-06-C3 |
3 |
35 |
Dia 6.5x8.5 |
|
635 |
APCD-635-05-C3 |
3 |
50 |
Dia 10.5x14.5 |
|
635 |
APCD-635-04-C3 |
3 |
50 |
Dia 10.5x14.5 |
|
635 |
APCD-635-03-C3 |
3 |
50 |
Dia 8.0x12.5 |
|
635 |
APCD-635-02-C3 |
3 |
50 |
Dia 6.2x11.5 |
|
635 |
APCD-635-01-C3 |
3 |
35 |
Dia 4.0x8.5 |
|
635 |
APFD-635-02-05-TA |
5 |
45 |
Dia10.0x26.5 |
|
635 |
APCD-635-D1-05-XX |
5 |
50 |
Dia 4.0x9 |
|
635 |
APCL-635-CW05 |
5 |
50 |
Dia 9.0x16.5 |
|
635 |
APCL-635-WP05 |
5 |
50 |
Dia 8.0x16.5 |
|
635 |
APCL-635-01-05 |
5 |
50 |
Dia 11.7x30 |
|
635 |
APCD-635-12-05 |
5 |
50 |
Dia 10.5x15.5 |
|
635 |
APCD-635-05-05 |
5 |
50 |
Dia 10.5x14.5 |
|
635 |
APCD-635-04-05 |
5 |
50 |
Dia 10.5x14.5 |
|
635 |
APCD-635-03-05 |
5 |
50 |
Dia 8.0x12.5 |
|
635 |
APCD-635-02-05 |
5 |
50 |
Dia 6.2x11.5 |
|
635 |
APCD-635-04-10-TM |
10 |
60 |
Dia 10.5x14.5 |
|
635 |
APCL-635-01-10 |
10 |
95 |
Dia 11.7x30 |
|
635 |
APCD-635-12-10 |
10 |
95 |
Dia 10.5x15.5 |
|
635 |
APCD-635-05-10 |
10 |
95 |
Dia 10.5x14.5 |
|
635 |
APCD-635-04-10 |
10 |
95 |
Dia 10.5x14.5 |
|
635 |
APFD-635-02-15-TA |
15 |
110 |
Dia10.0x26.5 |
|
650 |
APCD-650-06-C1-TA |
0.4 |
20 |
Dia 6.5x8.5 |
|
650 |
APCD-650-03-C2-TA |
1 |
35 |
Dia 8.0x12.5 |
|
650 |
APCD-650-77-C2-TM |
1 |
30 |
Dia 3.3x5.71 |
|
650 |
APCD-650-07-C2-TM |
1 |
30 |
Dia 3.3x7 |
|
650 |
APCD-650-06-C2-TM |
1 |
20 |
Dia6.5x8.5 |
|
650 |
APCD-650-01-C2-TM |
1 |
30 |
Dia 4x8.5 |
|
650 |
APCD-650-S7-C2 |
1 |
35 |
Dia3.3x5.71 |
|
650 |
APCD-650-D1-C2-XX |
1 |
40 |
Dia 4.0x9 |
|
650 |
APCL-650-01-C2 |
1 |
40 |
Dia 11.7x30 |
|
650 |
APCD-650-27-C2 |
1 |
35 |
Dia 20x55.1 |
|
650 |
APCD-650-12-C2 |
1 |
35 |
Dia 10.5x15.5 |
|
650 |
APCD-650-07-C2 |
1 |
35 |
Dia 3.3x7 |
|
650 |
APCD-650-06-C2 |
1 |
35 |
Dia 6.5x8.5 |
|
650 |
APCD-650-05-C2 |
1 |
35 |
Dia 10.5x14.5 |
|
650 |
APCD-650-04-C2 |
1 |
35 |
Dia 10.5x14.5 |
|
650 |
APCD-650-03-C2 |
1 |
35 |
Dia 8.0x12.5 |
|
650 |
APCD-650-02-C2 |
1 |
35 |
Dia 6.2x11.5 |
|
650 |
APCD-650-01-C2 |
1 |
35 |
Dia 4.0x8.5 |
|
650 |
APCD-650-61-C3-TA-01 |
3 |
30 |
60 |
|
650 |
APCD-650-07-C3-TM |
3 |
35 |
Dia 3.3x7 |
|
650 |
APCD-650-D1-C3-XX |
3 |
50 |
Dia 4.0x9 |
|
650 |
APCL-650-CW03 |
3 |
50 |
Dia 9.0x16.5 |
|
650 |
APCL-650-WP03 |
3 |
40 |
Dia 9.0x16.5 |
|
650 |
APCL-650-01-C3 |
3 |
50 |
Dia 11.7x30 |
|
450 |
AML-D080-450005-01 |
5 |
200 |
Dia 8.0x15.3 |
|
450 |
AML-L115-450005-01 |
5 |
200 |
Dia 11.7x30 |
|
450 |
AML-D200-450005-01 |
5 |
200 |
Dia 20x38 |
|
450 |
AML-D120-450005-01 |
5 |
200 |
Dia 12x38 |
|
450 |
AML-D105-450005-01 |
5 |
200 |
Dia 10.5x15.3 |
|
450 |
AML-D080-450005-02 |
5 |
200 |
Dia 8.0x15.3 |
|
450 |
AML-L115-450010-01 |
10 |
200 |
Dia 11.7x30 |
|
450 |
AML-D200-450010-01 |
10 |
200 |
Dia 20x38 |
|
450 |
AML-D120-450010-01 |
10 |
220 |
Dia 12x38 |
|
450 |
AML-D105-450010-01 |
10 |
220 |
Dia 10.5x15.3 |
|
450 |
AML-D080-450010-01 |
10 |
220 |
Dia 8.0x15.3 |
|
450 |
AML-D200-450015-01 |
15 |
200 |
Dia 20x38 |
|
450 |
AML-D200-450020-01 |
20 |
250 |
Dia 20x38 |
|
450 |
AML-D120-450020-01 |
20 |
250 |
Dia 12x38 |
|
450 |
AML-D200-450030-01 |
30 |
250 |
Dia 20x38 |
|
450 |
AML-D200-450040-01 |
40 |
250 |
Dia 20x38 |
|
450 |
AML-D200-450050-01 |
50 |
250 |
Dia 20x38 |
|
520 |
APCD-515-03-C2-TM |
1 |
100 |
Dia 8x15.5 |
|
520 |
APCD-515-07-C2-TM |
1 |
100 |
Dia 3.3x8 |
|
520 |
APCL-515-01-C2-TM |
1 |
100 |
Dia11.5x30 |
|
520 |
APCD-515-01-C2-TM |
1 |
100 |
Dia 4x8.5 |
|
520 |
APCD-515-03-C3-TM |
3 |
100 |
Dia 8x15.5 |
|
520 |
APCL-515-01-C3-TM |
3 |
100 |
Dia11.5x30 |
|
520 |
APCD-515-01-C3-TM |
3 |
100 |
Dia 4x8.5 |
|
520 |
APCD-515-03-05-TM |
5 |
100 |
Dia 8x15.5 |
|
635 |
APCD-635-06-C2-TM |
1 |
32 |
Dia 6.5x8.5 |
|
635 |
APCD-635-01-C2-TM |
1 |
32 |
Dia 4x8.5 |
|
635 |
APCD-635-D1-C2-XX |
1 |
40 |
Dia 4.0x9 |
|
635 |
APCL-635-01-C2 |
1 |
40 |
Dia 11.7x30 |
|
635 |
APCD-635-12-C2 |
1 |
40 |
Dia 10.5x15.5 |
|
635 |
APCD-635-07-C2 |
1 |
35 |
Dia 3.3x7 |
|
635 |
APCD-635-06-C2 |
1 |
35 |
Dia 6.5x8.5 |
|
635 |
APCD-635-05-C2 |
1 |
40 |
Dia 10.5x14.5 |
|
635 |
APCD-635-04-C2 |
1 |
40 |
Dia 10.5x14.5 |
|
635 |
APCD-635-03-C2 |
1 |
40 |
Dia 8.0x12.5 |
|
635 |
APCD-635-02-C2 |
1 |
40 |
Dia 6.2x11.5 |
|
635 |
APCD-635-01-C2 |
1 |
35 |
Dia 4.0x8.5 |
|
635 |
APFD-635-02-C3-TA |
3 |
40 |
Dia10x26.5 |
|
635 |
APCD-635-D1-C3-XX |
3 |
50 |
Dia 4.0x9 |
|
635 |
APCL-635-CW03 |
3 |
50 |
Dia 9.0x16.5 |
|
635 |
APCL-635-WP03 |
3 |
50 |
Dia 6.0x16.5 |
|
635 |
APCL-635-01-C3 |
3 |
50 |
Dia 11.7x30 |
|
635 |
APCD-635-12-C3 |
3 |
50 |
Dia 10.5x15.5 |
|
635 |
APCD-635-07-C3 |
3 |
35 |
Dia 3.3x7 |
|
635 |
APCD-635-06-C3 |
3 |
35 |
Dia 6.5x8.5 |
|
635 |
APCD-635-05-C3 |
3 |
50 |
Dia 10.5x14.5 |
|
635 |
APCD-635-04-C3 |
3 |
50 |
Dia 10.5x14.5 |
|
635 |
APCD-635-03-C3 |
3 |
50 |
Dia 8.0x12.5 |
|
635 |
APCD-635-02-C3 |
3 |
50 |
Dia 6.2x11.5 |
|
635 |
APCD-635-01-C3 |
3 |
35 |
Dia 4.0x8.5 |
|
635 |
APFD-635-02-05-TA |
5 |
45 |
Dia10.0x26.5 |
|
635 |
APCD-635-D1-05-XX |
5 |
50 |
Dia 4.0x9 |
|
635 |
APCL-635-CW05 |
5 |
50 |
Dia 9.0x16.5 |
|
635 |
APCL-635-WP05 |
5 |
50 |
Dia 8.0x16.5 |
|
635 |
APCL-635-01-05 |
5 |
50 |
Dia 11.7x30 |
|
635 |
APCD-635-12-05 |
5 |
50 |
Dia 10.5x15.5 |
|
635 |
APCD-635-05-05 |
5 |
50 |
Dia 10.5x14.5 |
|
635 |
APCD-635-04-05 |
5 |
50 |
Dia 10.5x14.5 |
|
635 |
APCD-635-03-05 |
5 |
50 |
Dia 8.0x12.5 |
|
635 |
APCD-635-02-05 |
5 |
50 |
Dia 6.2x11.5 |
|
635 |
APCD-635-04-10-TM |
10 |
60 |
Dia 10.5x14.5 |
|
635 |
APCL-635-01-10 |
10 |
95 |
Dia 11.7x30 |
|
635 |
APCD-635-12-10 |
10 |
95 |
Dia 10.5x15.5 |
|
635 |
APCD-635-05-10 |
10 |
95 |
Dia 10.5x14.5 |
|
635 |
APCD-635-04-10 |
10 |
95 |
Dia 10.5x14.5 |
|
635 |
APFD-635-02-15-TA |
15 |
110 |
Dia10.0x26.5 |
|
650 |
APCD-650-06-C1-TA |
0.4 |
20 |
Dia 6.5x8.5 |
|
650 |
APCD-650-03-C2-TA |
1 |
35 |
Dia 8.0x12.5 |
|
650 |
APCD-650-77-C2-TM |
1 |
30 |
Dia 3.3x5.71 |
|
650 |
APCD-650-07-C2-TM |
1 |
30 |
Dia 3.3x7 |
|
650 |
APCD-650-06-C2-TM |
1 |
20 |
Dia6.5x8.5 |
|
650 |
APCD-650-01-C2-TM |
1 |
30 |
Dia 4x8.5 |
|
650 |
APCD-650-S7-C2 |
1 |
35 |
Dia3.3x5.71 |
|
650 |
APCD-650-D1-C2-XX |
1 |
40 |
Dia 4.0x9 |
|
650 |
APCL-650-01-C2 |
1 |
40 |
Dia 11.7x30 |
|
650 |
APCD-650-27-C2 |
1 |
35 |
Dia 20x55.1 |
|
650 |
APCD-650-12-C2 |
1 |
35 |
Dia 10.5x15.5 |
|
650 |
APCD-650-07-C2 |
1 |
35 |
Dia 3.3x7 |
|
650 |
APCD-650-06-C2 |
1 |
35 |
Dia 6.5x8.5 |
|
650 |
APCD-650-05-C2 |
1 |
35 |
Dia 10.5x14.5 |
|
650 |
APCD-650-04-C2 |
1 |
35 |
Dia 10.5x14.5 |
|
650 |
APCD-650-03-C2 |
1 |
35 |
Dia 8.0x12.5 |
|
650 |
APCD-650-02-C2 |
1 |
35 |
Dia 6.2x11.5 |
|
650 |
APCD-650-01-C2 |
1 |
35 |
Dia 4.0x8.5 |
|
650 |
APCD-650-61-C3-TA-01 |
3 |
30 |
60 |
|
650 |
APCD-650-07-C3-TM |
3 |
35 |
Dia 3.3x7 |
|
650 |
APCD-650-D1-C3-XX |
3 |
50 |
Dia 4.0x9 |
|
650 |
APCL-650-CW03 |
3 |
50 |
Dia 9.0x16.5 |
|
650 |
APCL-650-WP03 |
3 |
40 |
Dia 9.0x16.5 |
|
650 |
APCL-650-01-C3 |
3 |
50 |
Dia 11.7x30 |
|
650 |
APCD-650-27-C3 |
3 |
35 |
Dia 20x55.1 |
|
650 |
APCD-650-12-C3 |
3 |
35 |
Dia 10.5x15.5 |
|
650 |
APCD-650-07-C3 |
3 |
35 |
Dia 3.3x7 |
|
650 |
APCD-650-06-C3 |
3 |
35 |
Dia 6.5x8.5 |
|
650 |
APCD-650-05-C3 |
3 |
35 |
Dia 10.5x14.5 |
|
650 |
APCD-650-04-C3 |
3 |
35 |
Dia 10.5x14.5 |
|
650 |
APCD-650-03-C3 |
3 |
35 |
Dia 8.0x12.5 |
|
650 |
APCD-650-02-C3 |
3 |
35 |
Dia 6.2x11.5 |
|
650 |
APCD-650-01-C3 |
3 |
35 |
Dia 4.0x8.5 |
|
650 |
APCD-650-01-C3-TM |
3.5 |
30 |
Dia 4x8.5 |
|
650 |
APCD-650-S7-05 |
5 |
35 |
Dia3.3x5.71 |
|
650 |
APCD-650-D1-05-XX |
5 |
50 |
Dia 4.0x9 |
|
650 |
APCL-650-CW05 |
5 |
40 |
Dia 9.0x16.5 |
|
650 |
APCL-650-WP05 |
5 |
50 |
Dia 9.0x16.5 |
|
650 |
APCL-650-01-05 |
5 |
50 |
Dia 11.7x30 |
|
650 |
APCD-650-27-05 |
5 |
40 |
Dia 20x55.1 |
|
650 |
APCD-650-12-05 |
5 |
40 |
Dia 10.5x15.5 |
|
650 |
APCD-650-07-05 |
5 |
40 |
Dia 3.3x7 |
|
650 |
APCD-650-06-05 |
5 |
40 |
Dia 6.5x8.5 |
|
650 |
APCD-650-05-05 |
5 |
40 |
Dia 10.5x14.5 |
|
650 |
APCD-650-04-05 |
5 |
40 |
Dia 10.5x14.5 |
|
650 |
APCD-650-03-05 |
5 |
40 |
Dia 8.0x12.5 |
|
650 |
APCD-650-02-05 |
5 |
40 |
Dia 6.2x11.5 |
|
650 |
APCD-650-01-05 |
5 |
40 |
Dia 4.0x8.5 |
|
650 |
APCL-650-01-10 |
10 |
50 |
Dia 11.7x30 |
|
650 |
APCD-650-27-10 |
10 |
60 |
Dia 20x55.1 |
|
650 |
APCD-650-12-10 |
10 |
60 |
Dia 10.5x15.5 |
|
650 |
APCD-650-05-10 |
10 |
60 |
Dia 10.5x14.5 |
|
650 |
APCD-650-04-10 |
10 |
60 |
Dia 10.5x14.5 |
|
780 |
APCD-780-02-C1-TA |
0.5 |
35 |
Dia 6.2x11.5 |
|
780 |
APCD-780-05-C3-TA |
0.5 |
35 |
Dia 10.5x15 |
|
780 |
APCD-780-07-C1-TA |
0.5 |
35 |
Dia 3.3x7 |
|
780 |
APCD-780-06-C1-TA |
0.5 |
35 |
Dia 6.5x8.5 |
|
780 |
APCD-780-01-C1-TM |
0.5 |
32 |
Dia 4x8.5 |
|
780 |
APCD-780-27-C2 |
1 |
35 |
Dia20x55.1 |
|
780 |
APCD-780-D1-C2-XX |
1 |
40 |
Dia 4.0x8.5 |
|
780 |
APCL-780-01-C2 |
1 |
40 |
Dia 11.7x30 |
|
780 |
APCD-780-12-C2 |
1 |
35 |
Dia 10.5x15.5 |
|
780 |
APCD-780-07-C2 |
1 |
35 |
Dia 3.3x7 |
|
780 |
APCD-780-06-C2 |
1 |
35 |
Dia 6.5x8.5 |
|
780 |
APCD-780-05-C2 |
1 |
40 |
Dia 10.5x15.0 |
|
780 |
APCD-780-04-C2 |
1 |
50 |
Dia 10.5x15.0 |
|
780 |
APCD-780-02-C2 |
1 |
35 |
Dia 6.2x11.5 |
|
780 |
APCD-780-01-C2 |
1 |
35 |
Dia 4.0x8.5 |
|
780 |
APCD-780-12-C3-TA |
2.8 |
40 |
Dia 10.5x15.5 |
|
780 |
APCD-780-01-C3-TA |
2.8 |
40 |
Dia 4x8.5 |
|
780 |
APCD-780-D1-C3-XX |
3 |
45 |
Dia 4.0x8.5 |
|
780 |
APCL-780-CW03 |
3 |
40 |
Dia 9.0x16.5 |
|
780 |
APCL-780-01-C3 |
3 |
50 |
Dia 11.7x30 |
|
780 |
APCD-780-27-C3 |
3 |
50 |
Dia 20x55.1 |
|
780 |
APCD-780-12-C3 |
3 |
35 |
Dia 10.5x15.5 |
|
780 |
APCD-780-07-C3 |
3 |
35 |
Dia 3.3x7 |
|
780 |
APCD-780-06-C3 |
3 |
35 |
Dia 6.5x8.5 |
|
780 |
APCD-780-05-C3 |
3 |
40 |
Dia 10.5x15.0 |
|
780 |
APCD-780-04-C3 |
3 |
50 |
Dia 10.5x15.0 |
|
780 |
APCD-780-02-C3 |
3 |
35 |
Dia 6.2x11.5 |
|
780 |
APCD-780-01-C3 |
3 |
35 |
Dia 4.0x8.5 |
|
780 |
APCD-780-01-05 |
5 |
45 |
Dia 4.0x8.5 |
|
830 |
AML-R3535-830XXX-01 |
150 |
260 |
3.5 |
|
830 |
AML-R040-830XXX-01 |
150 |
330 |
Dia 4x5 |
|
830 |
AML-R090-830XXX-02 |
160 |
260 |
Dia9.0x7.0 |
|
830 |
AML-R065-830XXX-03 |
160 |
260 |
Dia6.5x7.0 |
|
830 |
AML-R065-830XXX-02 |
160 |
260 |
Dia6.5x7.0 |
|
830 |
AML-R065-830XXX-01 |
160 |
350 |
Dia 6.5x7.0 |
|
830 |
AML-R090-830XXX-01 |
160 |
350 |
Dia 9.0x7.0 |
|
850 |
ADS-LDS8501D-01 |
0.7 |
100 |
59 ×33 ×21.5 |
|
850 |
APCD-850-D1-C2-XX |
1 |
40 |
Dia 4.0x9 |
|
850 |
APCL-850-CW03-C2 |
1 |
40 |
Dia 9.0x16.5 |
|
850 |
APCL-850-WP03-C2 |
1 |
40 |
Dia 8.0x16.5 |
|
850 |
APCL-850-01-C2 |
1 |
40 |
Dia 11.7x30 |
|
850 |
APCD-850-27-C2 |
1 |
40 |
Dia 20x55.1 |
|
850 |
APCD-850-12-C2 |
1 |
40 |
Dia 10.5x15.5 |
|
850 |
APCD-850-07-C2 |
1 |
40 |
Dia 3.3x7 |
|
850 |
APCD-850-06-C2 |
1 |
40 |
Dia 6.5x8.5 |
|
850 |
APCD-850-05-C2 |
1 |
40 |
Dia 10.5x14.5 |
|
850 |
APCD-850-04-C2 |
1 |
40 |
Dia 10.5x14.5 |
|
850 |
APCD-850-03-C2 |
1 |
40 |
Dia 8.0x12.5 |
|
850 |
APCD-850-02-C2 |
1 |
40 |
Dia 6.2x11.5 |
|
850 |
APCD-850-01-C2 |
1 |
40 |
Dia 4.0x8.5 |
|
850 |
APCD-850-D1-C3-XX |
3 |
50 |
Dia 4.0x9 |
|
850 |
APCL-850-CW03-C3 |
3 |
50 |
Dia 9.0x16.5 |
|
850 |
APCL-850-01-C3 |
3 |
50 |
Dia 11.7x30 |
|
850 |
APCD-850-27-C3 |
3 |
50 |
Dia 20x55.1 |
|
850 |
APCD-850-12-C3 |
3 |
50 |
Dia 10.5x15.5 |
|
850 |
APCD-850-07-C3 |
3 |
50 |
Dia 3.3x7 |
|
850 |
APCD-850-06-C3 |
3 |
50 |
Dia 6.5x8.5 |
|
850 |
APCD-850-05-C3 |
3 |
50 |
Dia 10.5x14.5 |
|
850 |
APCD-850-04-C3 |
3 |
50 |
Dia 10.5x14.5 |
|
850 |
APCD-850-03-C3 |
3 |
50 |
Dia 8.0x12.5 |
|
850 |
APCD-850-02-C3 |
3 |
50 |
Dia 6.2x11.5 |
|
850 |
APCD-850-01-C3 |
3 |
50 |
Dia 4.0x8.5 |
|
850 |
APCD-850-D1-05-XX |
5 |
50 |
Dia 4.0x9 |
|
850 |
APCL-850-CW03-05 |
5 |
50 |
Dia 9.0x16.5 |
|
850 |
APCL-850-WP03-05 |
5 |
50 |
Dia 8.0x16.5 |
|
850 |
APCL-850-01-05 |
5 |
50 |
Dia 11.7x30 |
|
850 |
APCD-850-27-05 |
5 |
50 |
Dia 20x55.1 |
|
850 |
APCD-850-12-05 |
5 |
50 |
Dia 10.5x15.5 |
|
850 |
APCD-850-07-05 |
5 |
50 |
Dia 3.3x7 |
|
850 |
APCD-850-06-05 |
5 |
50 |
Dia 6.5x8.5 |
|
850 |
APCD-850-05-05 |
5 |
50 |
Dia 10.5x14.5 |
|
850 |
APCD-850-04-05 |
5 |
50 |
Dia 10.5x14.5 |
|
850 |
APCD-850-03-05 |
5 |
50 |
Dia 8.0x12.5 |
|
850 |
APCD-850-02-05 |
5 |
50 |
Dia 6.2x11.5 |
|
850 |
APCD-850-01-05 |
5 |
50 |
Dia 4.0x8.5 |
|
940 |
AML-R090-940XXX-02 |
160 |
300 |
Dia9.0x7.0 |
|
940 |
AML-R090-940XXX-01 |
160 |
300 |
Dia9.0x7.0 |
|
940 |
AML-R065-940XXX-02 |
160 |
300 |
Dia6.5x7.0 |
|
940 |
AML-R065-940XXX-01 |
160 |
300 |
Dia6.5x7.0 |
