SOMO IR红外光学镜头，分辨率80~320型号汇总
|
型号 |
焦距 |
光圈值 |
80 |
160 |
320 |
|||||||||
|
像素间距 |
像素间距 |
像素间距 |
||||||||||||
|
12 |
17 |
25 |
34 |
12 |
17 |
25 |
34 |
12 |
17 |
25 |
34 |
|||
|
SM80P34-21F1 |
6.715 |
1.2 |
|
|
|
21 |
|
|
|
|
|
|
|
|
|
SM80P34-58F1 |
2.71 |
1.4 |
|
|
|
58 |
|
|
|
|
|
|
|
|
|
SM80P34-90F1 |
1.8 |
1.3 |
|
|
|
92 |
|
|
|
|
|
|
|
|
|
SM80P34-120F |
1.43 |
1.3 |
|
|
|
118 |
|
|
|
|
|
|
|
|
|
SM160P12-80F |
1.43 |
1.3 |
|
|
|
|
80 |
|
|
|
|
|
|
|
|
SM160P17-100F |
1.65 |
1.3 |
|
|
|
|
68 |
100 |
|
|
|
|
|
|
|
SM320P12-91F |
2.63 |
1.0 |
|
|
|
|
42 |
61 |
|
|
91 |
|
|
|
|
SM320P12-4.5M |
4.55 |
1.0 |
|
|
|
|
24 |
35 |
|
|
50 |
|
|
|
|
SM384P17-55F |
6.5 |
1.1 |
|
|
|
|
|
23 |
34 |
|
33 |
46 |
|
|
SOMO红外硫系玻璃材料规格参数
|
参数 |
CG1 |
CG2 |
CG3 |
CG4 |
|
化学式 |
Ge₂₈Sb₁₂Se₆₀ |
|
Ge₂₀Sb₁₅Se₆₅ |
|
|
密度(g/cm³) |
4.67 |
5.39 |
4.695 |
4.874 |
|
热膨胀系数(/K) |
14.14×10⁻⁶ |
18.46 × 10⁻⁶ |
19.20 × 10⁻⁶ |
35.90 × 10⁻⁶ |
|
25°C比热容(J/gK) |
0.297 |
|
|
|
|
100°C比热容(J/gK) |
0.305 |
|
|
|
|
200°C比热容(J/gK) |
0.318 |
|
|
|
|
热导率(W/mK) |
0.247 |
|
|
|
|
转变温度(°C) |
292 |
183 |
251 |
128.1 |
|
努氏硬度 |
142.2 |
|
|
|
|
波长(um) |
CG1折射率n |
CG2折射率n |
CG3折射率n |
CG4折射率n |
|
3.0 |
2.63491 |
3.2966624 |
2.6049797 |
2.7485903 |
|
4.0 |
2.62896 |
3.2781748 |
2.6021239 |
2.7409421 |
|
5.0 |
2.62531 |
3.2722701 |
2.5977709 |
2.7369253 |
|
6.0 |
2.62232 |
3.2671570 |
2.5951828 |
2.7342145 |
|
7.0 |
2.61957 |
3.2635306 |
2.5918044 |
2.7320886 |
|
8.0 |
2.61616 |
3.2616249 |
2.5887332 |
2.7301380 |
|
9.0 |
2.61346 |
3.2594029 |
2.5854533 |
2.7328682 |
|
10.0 |
2.60995 |
3.2567761 |
2.5831379 |
2.7262186 |
|
11.0 |
2.60604 |
3.2546245 |
2.5792424 |
2.7240651 |
|
12.0 |
2.60108 |
3.2525421 |
2.5747570 |
2.7217408 |

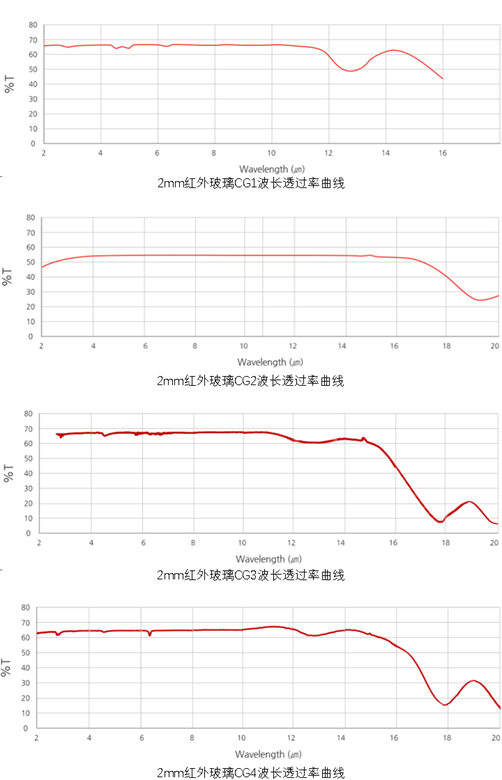

红外玻璃透过率曲线，CG1/CG2/CG3/CG4，厚度2mm。
SM80P34红外热成像镜头，80x80红外镜头参数列表：
|
参数 |
SM80P34-21F1 |
SM80P34-58F1 |
SM80P34-90F1 |
SM80P34-120F |
|
分辨率 |
80x80 |
80x80 |
80x80 |
80x80 |
|
像素间距(μm) |
34 |
34 |
34 |
34 |
|
水平视场角(°) |
21 |
58 |
92 |
118 |
|
焦距(mm) |
6.715 |
2.71 |
1.8 |
1.48 |
|
光圈值 |
1.2 |
1.4 |
1.3 |
1.3 |
|
后焦距(mm) |
8.73 |
3.95 |
2.53 |
1.815 |
|
畸变 |
-3.7% |
-22.3% |
-28.2% |
-44.5% |
|
调制传递函数 |
38.7% |
47.5% |
57.8% |
56.8% |
|
对焦类型 |
固定焦距 |
固定焦距 |
固定焦距 |
固定焦距 |
|
无热化 |
是 |
是 |
是 |
是 |
|
尺寸(mm) |
Ø18x15 |
Ø10.0x4.8㎜ |
Ø10.0x3.6㎜ |
Ø10.0x2.8㎜ |
|
接口 |
M10xP0.5 |
M10xP0.5 |
M10xP0.5 |
M10xP0.5 |
|
镜筒材质 |
铝 |
铝 |
LCP |
LCP |
|
重量(g) |
7.0 |
0.92 |
0.51 |
0.36 |
|
对焦范围 |
0.6m至无限远 |
0.05m至无限远 |
0.05m至无限远 |
0.03m至无限远 |
SM160P12非球面红外镜头，160x120红外镜头/320x240红外镜头参数列表：
|
参数 |
SM160P12-80F |
SM160P17-100F |
SM320P12-91F |
SM320P12-4.5M |
SM384P17-55F |
|
分辨率 |
160x120 |
160x120 |
320x240 |
320x240 |
384x288 |
|
像素间距(μm) |
12 |
17 |
12 |
12 |
17 |
|
水平视场角(°) |
80.1 |
101 |
91.2 |
50.6 |
55.4 |
|
焦距(mm) |
1.43 |
1.65 |
2.63 |
4.55 |
6.5 |
|
光圈值 |
1.3 |
1.3 |
1.0 |
1.0 |
1.1 |
|
后焦距(mm) |
1.8 |
2.02 |
7.5 |
8.5 |
6.06 |
|
畸变 |
-35.1% |
-32.9%(0.7Field) |
-53% |
-17.9% |
-5.04% |
|
调制传递函数 |
17.7% |
31.1%(0.7Field) |
28.2%(0.7Field) |
20.1% |
35.2% |
|
对焦类型 |
固定焦距 |
固定焦距 |
固定焦距 |
固定焦距 |
固定焦距 |
|
无热化 |
是 |
是 |
是 |
是 |
是 |
|
尺寸(mm) |
Ø10.0x2.8 |
Ø10.0x2.8 |
Ø25.5x21 |
Ø28x20 |
Ø27X15.22 |
|
接口 |
M10xP0.5 |
M10xP0.5 |
M19xP0.5 |
M25xP0.5 |
M25xP0.5 |
|
镜筒材质 |
铝 |
铝 |
铝 |
铝 |
铝 |
|
重量(g) |
0.5 |
0.8 |
19.6 |
32.7 |
21.8 |
|
对焦范围 |
0.03m至无限远 |
0.03m至无限远 |
1.0m至无限远 |
0.5m至无限远 |
0.3m至无限远 |

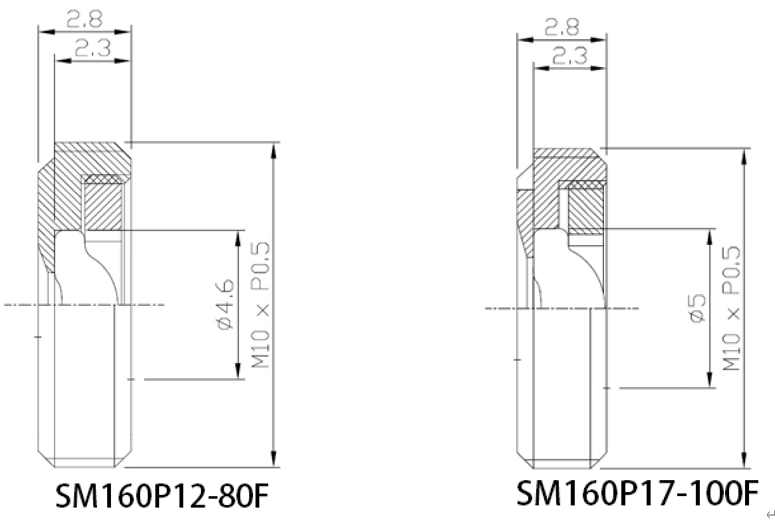

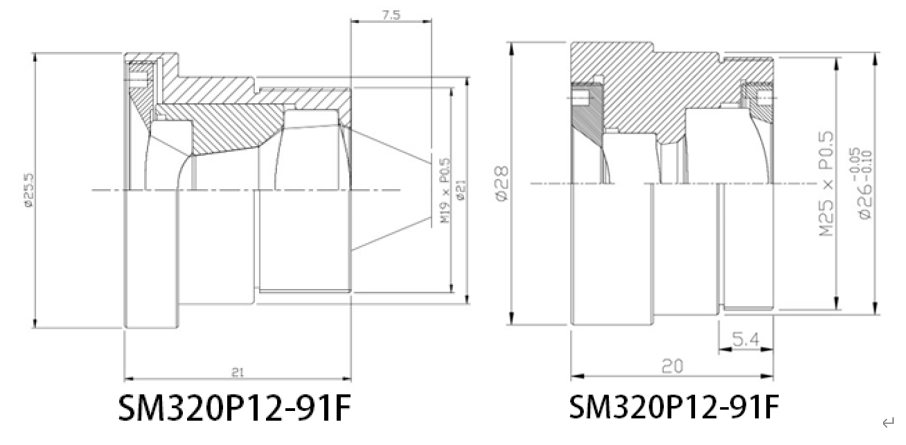

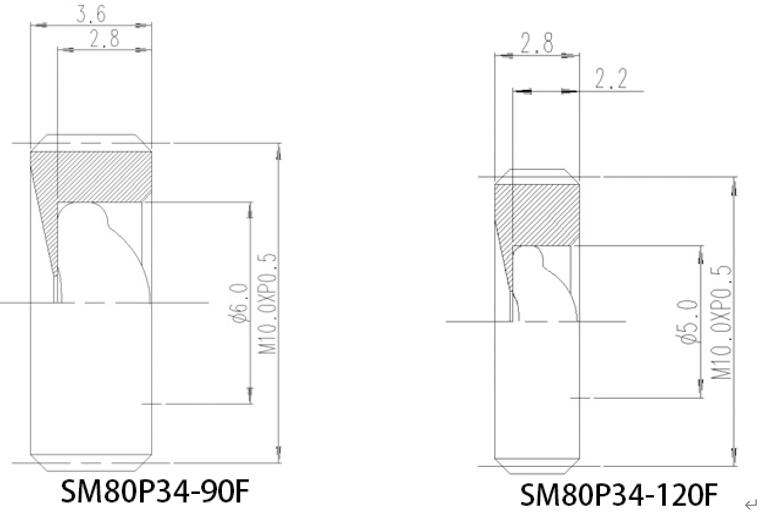

SOMO IR红外热成像镜头：80x80红外镜头/160x120红外镜头/320x240红外镜头规格图纸：
