热辐射红外光源/宽光谱黑体光源/纳米红外光源图示
HISpower系列高功率红外光源型号表：
|
型号 |
HIS2000R-0 |
HIS2000R-A300-6 |
HIS2000R-C300-6 |
HIS2000R-A300-9 |
HIS2000R-C300-9 |
HIS2000R-0WC |
HIS2000R-CWC300 |
HIS2000R-BWC300 |
|
封装 |
TO-8 |
TO-8 |
TO-8 |
TO-8 |
TO-8 |
TO-8 |
TO-8 |
TO-8 |
|
辐射面积 |
40 mm² |
40 mm² |
40 mm² |
40 mm² |
40 mm² |
40 mm² |
40 mm² |
40 mm² |
|
发射率 |
> 0.9 |
> 0.9 |
> 0.9 |
> 0.9 |
> 0.9 |
> 0.9 |
> 0.9 |
> 0.9 |
|
温度 |
630°C at 2.5W |
630°C at 2.5W |
630°C at 2.5W |
630°C at 2.5W |
630°C at 2.5W |
630°C at 2.5W |
630°C at 2.5W |
630°C at 2.5W |
|
光输出功率 |
up to 1W |
up to 620mW |
up to 780mW |
up to 560mW |
up to 730mW |
up to 830mW |
up to 725mW |
up to 740mW |
|
最大电功率(DC) |
2.5W |
2.5W |
2.5W |
2.5W |
2.5W |
2.5W |
2.5W |
2.5W |
|
最大电压 |
3.8V |
3.8V |
3.8V |
3.8V |
3.8V |
3.8V |
3.8V |
3.8V |
|
最大电流 |
660mA |
660mA |
660mA |
660mA |
660mA |
660mA |
660mA |
660mA |
|
电冷电阻 |
5.5+/-1Ω |
5.5+/-1Ω |
5.5+/-1Ω |
5.5+/-1Ω |
5.5+/-1Ω |
5.5+/- 1Ω |
5.5+/-1Ω |
5.5+/-1Ω |
|
电热电阻 |
5.5+/-1Ω |
5.5+/-1Ω |
5.5+/-1Ω |
5.5+/-1Ω |
5.5+/-1Ω |
5.5+/-1Ω |
5.5+/-1Ω |
5.5+/-1Ω |
|
调制频率 |
4Hz* |
4Hz* |
4Hz* |
4Hz* |
4Hz* |
4Hz* |
4Hz* |
4Hz* |
|
滤光片/窗口片 |
None |
Sapphire (soldered) |
CaF₂(glued) |
Sapphire (soldered) |
CaF₂(glued) |
None |
CaF₂ (soldered) |
BaF₂(soldered) |
|
波长范围 |
2 to 20µm |
2 to 6µm |
2 to 11µm |
2 to 6µm |
2 to 11µm |
2 to 20µm |
2 to 11µm |
2 to 14µm |
|
气体 |
None |
Nitrogen |
Nitrogen |
Nitrogen |
Nitrogen |
None |
Nitrogen |
Nitrogen |
|
配件 |
Driver Circuit Board DCB.8.2500 |
Driver Circuit Board DCB.8.2500 |
Driver Circuit Board DCB.8.2500 |
Driver Circuit Board DCB.8.2500 |
Driver Circuit Board DCB.8.2500 |
Driver Circuit Board DCB.8.2500 |
Driver Circuit Board DCB.8.2500 |
Driver Circuit Board DCB.8.2500 |

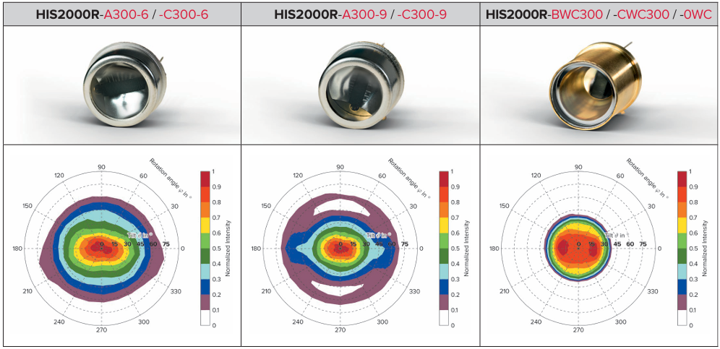

HISpower系列高功率红外光源角向辐射分布图

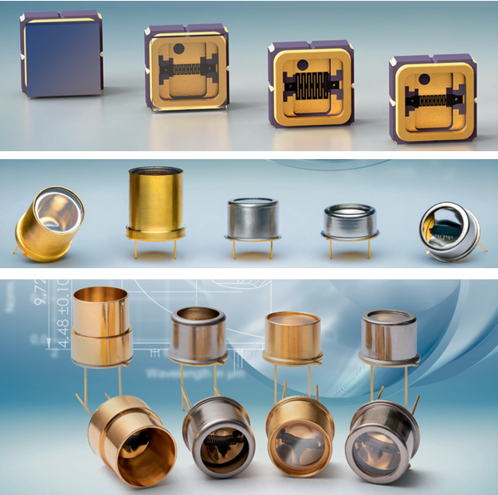

微型黑体红外光源/纳米红外光源特点和应用：
- 从2µm-20µm宽广的波长区间，适用于大量应用
- 尺寸小，高效率，高辐射功率
- SMD贴片，TO-8封装和TO-39/TO-5标准封装
- 专利纳米结构元件可产生黑体辐射光谱
- 应用：气体分析，光谱仪器，工业，科研等领域
宽光谱黑体光源各系列型号表：
HISsmd系列微型黑体红外光源型号表：
|
型号 |
HIS20smd-0 |
HIS20smd-A |
HIS20smd-S |
HIS100smd-0 |
HIS100smd-A |
HIS100smd-S |
HIS180smd-0 |
HIS180smd-A |
HIS180smd-S |
|
封装 |
SMD (3x3mm²) |
SMD (3x3mm²) |
SMD (3x3mm²) |
SMD (3x3mm²) |
SMD (3x3mm²) |
SMD (3x3mm²) |
SMD (3x3mm²) |
SMD (3x3mm²) |
SMD (3x3mm²) |
|
辐射面积 |
0.32mm² |
0.32mm² |
0.32mm² |
1mm² |
1mm² |
1mm² |
1.8mm² |
1.8mm² |
1.8mm² |
|
发射率 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
|
温度 |
700°C at 175mW |
700°C at 175mW |
700°C at 175mW |
600°C at 290mW |
600°C at 290mW |
600°C at 290mW |
500°C at 330mW |
550°C at 390mW |
550°C at 390mW |
|
光输出功率 |
up to 15mW |
up to 11mW |
up to 13mW |
up to 30mW |
up to 22mW |
up to 26mW |
up to 40mW |
up to 23mW |
up to 35mW |
|
最大电功率(DC) |
175mW |
175mW |
175mW |
290mW |
290mW |
290mW |
330mW |
390mW |
390mW |
|
最大电压 |
1.25V |
1.25V |
1.25V |
1.7V |
1.7V |
1.7V |
2.6V |
2.8V |
2.8V |
|
最大电流 |
140mA |
140mA |
140mA |
170mA |
170mA |
170mA |
125mA |
140mA |
140mA |
|
电冷电阻 |
8.5+/-1Ω |
8.5+/-1Ω |
8.5+/-1Ω |
9.5+/-1Ω |
9.5+/-1Ω |
9.5+/-1Ω |
20+/-2Ω |
20+/-2Ω |
20+/-2Ω |
|
电热电阻 |
8.5+/-1Ω |
8.5+/-1Ω |
8.5+/-1Ω |
9.5+/-1Ω |
9.5+/-1Ω |
9.5+/-1Ω |
20+/-2Ω |
20+/- 2Ω |
20+/-2Ω |
|
调制频率 |
14Hz* |
14Hz* |
14Hz* |
10Hz* |
10Hz* |
10Hz* |
8Hz* |
8Hz* |
8Hz* |
|
滤光片/窗口片 |
None |
Sapphire (glued) |
Si-ARC (glued) |
None |
Sapphire (glued) |
Si-ARC(glued) |
None |
Sapphire (glued) |
Si-ARC(glued) |
|
波长范围 |
2 to 20µm |
2 to 6µm |
2 to 14µm |
2 to 20µm |
2 to 6µm |
2 to 14µm |
2 to 20µm |
2 to 6µm |
2 to 14µm |
|
气体 |
Air |
Air |
Air |
Air |
Air |
Air |
Air |
Air |
Air |
|
配件 |
Driver Circuit Board DCB.S3.175 |
Driver Circuit Board DCB.S3.175 |
Driver Circuit Board DCB.S3.175 |
Driver Circuit Board DCB.S3.290 |
Driver Circuit Board DCB.S3.290 |
Driver Circuit Board DCB.S3.290 |
Driver Circuit Board DCB.S3.330 |
Driver Circuit Board DCB.S3.390 |
Driver Circuit Board DCB.S3.390 |
|
Breakout BoardBOB 0.4 |
|||||||||

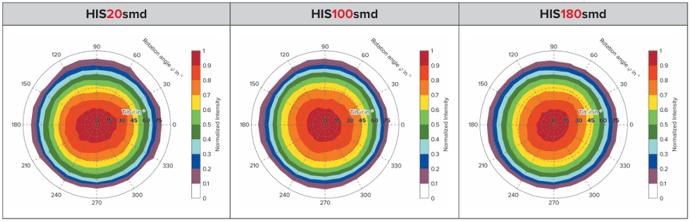

HISsmd系列微型黑体红外光源角向辐射分布图
HISbasic系列红外光源型号表：
|
型号 |
HIS2000R-BWC300 |
HIS550R-0 |
HIS550R-0WC |
HIS550R-A |
HIS550R-B |
|
封装 |
TO-8 |
TO-39/TO-5 |
TO-39/TO-5 |
TO-39/TO-5 |
TO-39/TO-5 |
|
辐射面积 |
40mm² |
11mm² |
11mm² |
11 mm² |
11 mm² |
|
发射率 |
> 0.9 |
> 0.9 |
> 0.9 |
> 0.9 |
> 0.9 |
|
温度 |
630°C at 2.5W |
600°C at 650mW |
600°C at 650mW |
600°C at 650mW |
600°C at 650mW |
|
光输出功率 |
up to 740mW |
up to 195mW |
up to 190mW |
up to 135mW |
up to 200mW |
|
最大电功率(DC) |
2.5W |
700mW |
700mW |
700mW |
700mW |
|
最大电压 |
3.8V |
4.0V |
4.0V |
4.0V |
4.0V |
|
最大电流 |
660mA |
175mA |
175mA |
175mA |
175mA |
|
电冷电阻 |
5.5+/-1Ω |
22+/-3Ω (typ. 21...23Ω) |
22+/-3Ω (typ. 21...23Ω) |
22+/-3Ω (typ. 21...23Ω) |
22+/-3Ω (typ. 21...23Ω) |
|
电热电阻 |
5.5+/-1Ω |
22+/-3Ω (typ.21...23Ω) |
22+/-3Ω (typ.21...23Ω) |
22+/-3Ω (typ.21...23Ω) |
22+/-3Ω (typ.21...23Ω) |
|
调制频率 |
4 Hz* |
- |
- |
- |
- |
|
滤光片/窗口片 |
BaF₂(soldered) |
None |
None |
Sapphire(soldered) |
BaF₂(glued) |
|
波长范围 |
2 to 14µm |
2 to 20µm |
2 to 20µm |
2 to 6µm |
2 to 14µm |
|
气体 |
Nitrogen |
None |
None |
Nitrogen |
Nitrogen |
|
配件 |
Driver Circuit Board DCB.8.2500 |
Driver Circuit Board DCB.39.700 |
Driver Circuit Board DCB.39.700 |
Driver Circuit Board DCB.39.700 |
Driver Circuit Board DCB.39.700 |

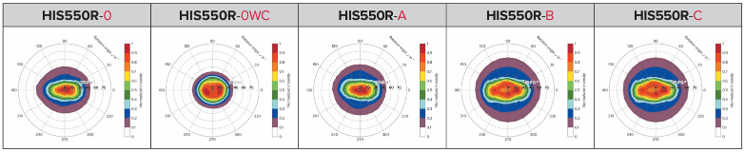

HISbasic系列红外光源角向辐射分布图
