Spectrogon脉宽压缩光栅，200-2000nm，高效率，众多标准品可选
瑞典Spectrogon公司（总部及生产基地位于斯德哥尔摩）专注于研发与制造滤光片、各类薄膜涂层以及高效的透射与衍射光栅。其核心产品之一是脉宽压缩光栅，这是一种专为超短脉冲应用优化的高效衍射光栅，具备高效率、宽调谐范围和高损伤阈值等特性，波长覆盖范围达200至2000nm。

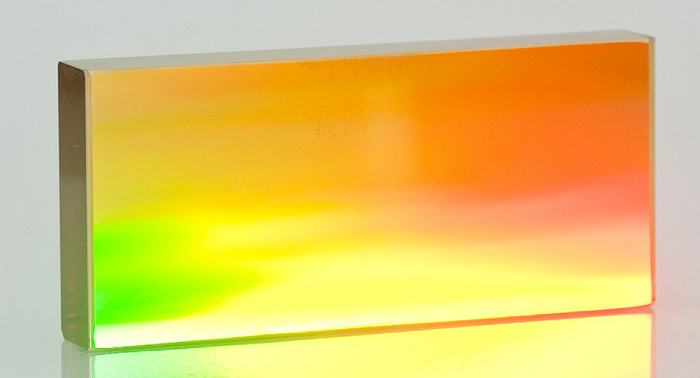

Spectrogon光栅/透射光栅/超短脉冲压缩光栅图示
瑞典Spectrogon脉宽压缩光栅/激光脉冲压缩光栅/高效衍射光栅的标准型号表：
注：所示透射光栅中的激光脉冲压缩光栅(Pulse Compression Gratings)的效率曲线仅适用于指定几何结构和波长，实际值可能因使用几何结构和测量技术而有所不同。
|
产品编号Art no |
描述(Z) |
优化波长(nm) |
偏差(Deg) |
最小效率%(TM/-1) |
|
715.704.400 |
PC 0300 50x50x10 NIR |
800 |
8 |
25 |
|
715.704.310 |
PC 0600 25x25x6 NIR |
800 |
8 |
29 |
|
715.704.550 |
PC 0600 30x30x6 NIR |
800 |
8 |
29 |
|
715.703.080 |
PC 0600 30x30x6 1550 nm |
1550 |
10 |
90 |
|
715.701.890 |
PC 0600 50x50x10 NIR |
1600 |
16 |
90 |
|
715.703.560 |
PC 0600 50x50x10 1550 nm |
1550 |
10 |
90 |
|
715.707.500 |
PC 0600 50x50x10 1550 nm (Z) |
1550 |
10 |
90 |
|
715.705.510 |
PC 0600 50x50x10 NIR |
2450 |
10 |
90 |
|
715.707.120 |
PC 0600 50x110x16 1550 nm (Z) |
1550 |
10 |
90 |
|
715.701.910 |
PC 0600 50x110x16 NIR |
1600 |
16 |
90 |
|
715.706.430 |
PC 0600 110x110x16 NIR |
2450 |
10 |
90 |
|
715.706.880 |
PC 0600 120x140x20 NIR |
2450 |
10 |
90 |
|
715.707.230 |
PC 0600 120x140x20 NIR (Z) |
2450 |
10 |
90 |
|
715.704.900 |
PC 0800 25x50x10 NIR |
1250 |
10 |
90 |
|
715.707.290 |
PC 0800 30x30x6 NIR |
1250 |
10 |
90 |
|
715.707.300 |
PC 0800 30x75x16 NIR (Z) |
1250 |
10 |
90 |
|
715.707.430 |
PC 0800 50x50x10 NIR |
1350 |
10 |
90 |
|
715.707.610 |
PC 0800 50x110x16 NIR (Z) |
1250 |
10 |
90 |
|
715.706.540 |
PC 0800 100x140x20 NIR (Z) |
1250 |
10 |
90 |
|
715.706.530 |
PC 0800 110x110x16 NIR (Z) |
1250 |
10 |
90 |
|
715.703.070 |
PC 0900 30x30x6 NIR |
800 |
10 |
50 |
|
715.703.060 |
PC 0900 30x30x6 NIR |
1032 |
8 |
90 |
|
715.704.600 |
PC 0900 30x30x6 NIR |
1060 |
8 |
90 |
|
715.703.450 |
PC 0900 30x30x6 1350 nm |
1350 |
8 |
90 |
|
715.703.130 |
PC 0900 30x30x6 1550 nm |
1550 |
8 |
90 |
|
715.707.540 |
PC 0900 30x30x6 1950 nm |
1950 |
10 |
90 |
|
715.703.210 |
PC 0900 30x64x10 1550 nm |
1550 |
8 |
90 |
|
715.703.440 |
PC 0900 30x110x16 1350 nm |
1350 |
8 |
90 |
|
715.703.090 |
PC 0900 30x110x16 1550 nm |
1550 |
8 |
90 |
|
715.706.550 |
PC 0900 30x110x16 1950 nm |
1950 |
10 |
90 |
|
715.704.340 |
PC 0900 50x50x10 NIR |
1047 |
8 |
90 |
|
715.707.580 |
PC 0900 50x50x10 NIR |
1200 |
8 |
90 |
|
715.703.550 |
PC 0900 50x50x10 1550 nm |
1550 |
8 |
90 |
|
715.707.030 |
PC 0900 50x50x10 1950 nm (Z) |
1950 |
10 |
90 |
|
715.707.020 |
PC 0900 50x110x16 NIR |
800 |
10 |
50 |
|
715.707.040 |
PC 0900 50x110x16 1950 nm (Z) |
1950 |
10 |
90 |
|
715.707.650 |
PC 0900 110x110x16 1550 nm (Z) |
1550 |
10 |
90 |
|
715.706.440 |
PC 0900 120x140x20 1550 nm |
1550 |
8 |
90 |
|
715.704.140 |
PC 1100 25x25x6 NIR |
1550 |
8 |
90 |
|
715.707.420 |
PC 1100 30x30x6 NIR |
1032 |
10 |
90 |
|
715.706.390 |
PC 1100 30x75x16 NIR |
800 |
8 |
88 |
|
715.706.520 |
PC 1100 30x75x16 NIR (Z) |
800 |
8 |
88 |
|
715.702.240 |
PC 1100 30x110x16 NIR |
800 |
8 |
88 |
|
715.706.580 |
PC 1100 30x110x16 NIR (Z) |
800 |
8 |
88 |
|
715.706.900 |
PC 1100 30x110x16 NIR |
1550 |
8 |
90 |
|
715.705.180 |
PC 1100 50x50x10 NIR |
800 |
8 |
88 |
|
715.703.200 |
PC 1100 50x50x10 NIR |
1550 |
8 |
90 |
|
715.703.500 |
PC 1100 110x110x16 NIR |
800 |
8 |
88 |
|
715.704.160 |
PC 1200 25x25x6 NIR |
800 |
8 |
90 |
|
715.702.200 |
PC 1200 25x25x6 NIR |
1047 |
8 |
90 |
|
715.701.120 |
PC 1200 30x30x6 NIR |
800 |
8 |
90 |
|
715.703.770 |
PC 1200 30x30x6 NIR |
1047 |
8 |
90 |
|
715.702.940 |
PC 1200 30x30x6 1550 nm |
1550 |
8 |
90 |
|
715.701.200 |
PC 1200 30x64x10 NIR |
800 |
8 |
90 |
|
715.703.410 |
PC 1200 30x64x10 1035 nm |
1035 |
8 |
90 |
|
715.705.810 |
PC 1200 30x64x10 1550 nm |
1550 |
8 |
90 |
|
715.700.550 |
PC 1200 30x110x16 NIR |
800 |
8 |
90 |
|
715.702.950 |
PC 1200 30x110x16 NIR (Z) |
800 |
8 |
90 |
|
715.702.740 |
PC 1200 30x110x16 NIR |
1550 |
8 |
90 |
|
715.700.640 |
PC 1200 50x50x10 NIR |
800 |
8 |
90 |
|
715.705.050 |
PC 1200 50x50x10 NIR (Z) |
800 |
8 |
90 |
|
715.704.690 |
PC 1200 50x50x10 NIR |
1053 |
8 |
90 |
|
715.707.590 |
PC 1200 50x50x10 NIR (Z) |
1053 |
8 |
90 |
|
715.704.250 |
PC 1200 50x50x10 NIR |
1250 |
8 |
90 |
|
715.702.150 |
PC 1200 58x58x10 NIR |
800 |
8 |
90 |
|
715.703.930 |
PC 1200 58x58x10 NIR (Z) |
800 |
8 |
90 |
|
715.703.700 |
PC 1200 58x58x10 NIR |
1550 |
8 |
90 |
|
715.703.880 |
PC 1200 58x58x10 NIR (Z) |
1550 |
8 |
90 |
|
715.700.620 |
PC 1200 64x64x10 NIR |
800 |
8 |
90 |
|
715.700.630 |
PC 1200 50x110x16 NIR |
800 |
8 |
90 |
|
715.701.320 |
PC 1200 50x110x16 NIR |
800 |
14 |
90 |
|
715.702.910 |
PC 1200 50x110x16 NIR (Z) |
800 |
8 |
90 |
|
715.705.600 |
PC 1200 50x110x16 NIR |
1047 |
8 |
90 |
|
715.705.030 |
PC 1200 50x140x20 NIR |
800 |
8 |
90 |
|
715.700.460 |
PC 1200 90x90x16 NIR |
800 |
8 |
90 |
|
715.703.280 |
PC 1200 100x140x20 NIR |
800 |
8 |
90 |
|
715.700.580 |
PC 1200 110x110x16 NIR |
800 |
8 |
90 |
|
715.703.960 |
PC 1200 110x110x16 NIR (Z) |
800 |
8 |
90 |
|
715.701.220 |
PC 1200 120x140x20 NIR |
800 |
8 |
90 |
|
715.704.670 |
PC 1200 120x140x20 NIR (Z) |
800 |
8 |
90 |
|
715.705.400 |
PC 1200 120x140x20 NIR |
1053 |
8 |
90 |
|
715.707.210 |
PC 1200 120x140x20 NIR |
1550 |
8 |
90 |
|
715.704.680 |
PC 1250 30x64x10 1040 nm |
1040 |
8 |
90 |
|
715.703.190 |
PC 1400 25x25x6 NIR |
800 |
8 |
90 |
|
715.707.310 |
PC 1400 25x50x10 NIR |
800 |
8 |
90 |
|
715.702.620 |
PC 1400 30x30x6 NIR |
800 |
12 |
90 |
|
715.700.720 |
PC 1400 30x110x16 NIR |
800 |
15 |
90 |
|
715.701.760 |
PC 1400 30x110x16 NIR |
800 |
8 |
90 |
|
715.707.010 |
PC 1400 40x140x20 NIR (Z) |
800 |
15 |
90 |
|
715.702.840 |
PC 1400 50x50x10 NIR |
800 |
8 |
90 |
|
715.703.990 |
PC 1400 50x50x10 NIR (Z) |
800 |
8 |
90 |
|
715.707.510 |
PC 1400 50x50x10 NIR |
1030 |
10 |
90 |
|
715.704.510 |
PC 1400 50x110x16 NIR |
800 |
8 |
90 |
|
715.704.010 |
PC 1400 50x110x16 NIR (Z) |
800 |
8 |
90 |
|
715.704.610 |
PC 1400 60x120x20 NIR |
800 |
21 |
90 |
|
715.703.260 |
PC 1400 64x64x10 NIR |
800 |
8 |
90 |
|
715.703.620 |
PC 1400 90x90x16 NIR |
800 |
8 |
90 |
|
715.703.240 |
PC 1400 110x110x16 NIR |
800 |
15 |
90 |
|
715.704.990 |
PC 1400 110x110x16 NIR (Z) |
800 |
10 |
90 |
|
715.704.080 |
PC 1400 100x140x20 NIR |
800 |
17 |
90 |
|
715.704.190 |
PC 1400 120x140x20 NIR |
800 |
12 |
90 |
|
715.704.660 |
PC 1400 120x140x20 NIR (Z) |
800 |
8 |
90 |
|
715.705.730 |
PC 1480 25x25x6 NIR |
1053 |
10 |
90 |
|
715.704.030 |
PC 1480 50x50x10 NIR |
765 |
20 |
89 |
|
715.707.330 |
PC 1480 50x50x10 NIR |
1053 |
10 |
90 |
|
715.705.780 |
PC 1480 50x110x16 NIR |
1053 |
10 |
90 |
|
715.706.150 |
PC 1480 58x58x10 NIR |
800 |
10 |
90 |
|
715.707.100 |
PC 1480 60x140x20 NIR |
800 |
10 |
90 |
|
715.703.750 |
PC 1480 60x140x20 NIR |
1060 |
8 |
90 |
|
715.705.740 |
PC 1480 110x110x16 NIR |
800 |
10 |
90 |
|
715.705.750 |
PC 1480 120x140x20 NIR |
800 |
10 |
90 |
|
715.706.110 |
PC 1480 120x140x20 NIR (Z) |
800 |
10 |
90 |
|
715.706.780 |
PC 1480 140x120x20 NIR (Z) |
800 |
10 |
90 |
|
715.705.990 |
PC 1480 140x120x20 NIR |
800 |
18 |
90 |
|
715.703.640 |
PC 1500 25x25x6 NIR |
800 |
8 |
90 |
|
715.702.590 |
PC 1500 30x30x6 NIR |
800 |
55 |
90 |
|
715.704.050 |
PC 1500 30x30x6 NIR |
1030 |
8 |
90 |
|
715.703.860 |
PC 1500 30x64x10 NIR |
800 |
8 |
90 |
|
715.706.220 |
PC 1500 30x64x10 NIR |
1030 |
8 |
90 |
|
715.705.070 |
PC 1500 30x75x16 1030 nm |
1030 |
8 |
90 |
|
715.701.470 |
PC 1500 30x110x16 800 nm |
800 |
8 |
90 |
|
715.702.990 |
PC 1500 30x110x16 800 nm |
800 |
26 |
90 |
|
715.706.330 |
PC 1500 30x110x16 NIR (Z) |
800 |
30 |
90 |
|
715.703.110 |
PC 1500 30x110x16 1030 nm |
1030 |
8 |
90 |
|
715.703.100 |
PC 1500 30x110x16 1030 nm (Z) |
1030 |
8 |
90 |
|
715.704.120 |
PC 1500 50x50x10 NIR |
800 |
13 |
90 |
|
715.703.980 |
PC 1500 50x50x10 NIR (Z) |
800 |
13 |
90 |
|
715.701.380 |
PC 1500 50x110x16 800 nm |
800 |
8 |
90 |
|
715.703.510 |
PC 1500 50x110x16 NIR (Z) |
800 |
8 |
90 |
|
715.703.520 |
PC 1500 50x110x16 NIR (Z) |
800 |
30 |
90 |
|
715.702.470 |
PC 1500 50x140x20 NIR |
800 |
13 |
90 |
|
715.706.670 |
PC 1500 50x140x20 NIR (Z) |
800 |
13 |
90 |
|
715.704.350 |
PC 1500 58x58x10 NIR |
800 |
14 |
90 |
|
715.703.920 |
PC 1500 58x58x10 NIR (Z) |
800 |
13 |
90 |
|
715.701.750 |
PC 1500 64x64x10 NIR |
800 |
8 |
90 |
|
715.705.230 |
PC 1500 64x64x10 NIR (Z) |
800 |
8 |
90 |
|
715.706.510 |
PC 1500 70x140x20 NIR |
800 |
13 |
90 |
|
715.707.070 |
PC 1500 70x140x20 NIR (Z) |
800 |
13 |
90 |
|
715.704.520 |
PC 1500 80x50x16 NIR |
800 |
8 |
90 |
|
715.703.780 |
PC 1500 90x90x16 NIR |
800 |
14 |
90 |
|
715.703.610 |
PC 1500 100x140x20 NIR |
800 |
8 |
90 |
|
715.702.040 |
PC 1500 100x140x20 NIR |
800 |
33 |
90 |
|
705.703.420 |
PC 1500 110x50x16 NIR |
800 |
8 |
90 |
|
715.706.940 |
PC 1500 110x50x16 NIR (Z) |
800 |
8 |
90 |
|
715.704.200 |
PC 1500 110x110x16 NIR |
800 |
8 |
90 |
|
715.704.850 |
PC 1500 110x110x16 NIR (Z) |
800 |
8 |
90 |
|
715.705.480 |
PC 1500 110x110x16 NIR |
800 |
30 |
90 |
|
715.701.660 |
PC 1500 120x140x20 NIR |
800 |
8 |
90 |
|
715.703.950 |
PC 1500 120x140x20 NIR (Z) |
800 |
13 |
90 |
|
715.705.620 |
PC 1500 120x140x20 NIR |
800 |
30 |
90 |
|
715.704.430 |
PC 1600 25x25x6 NIR |
800 |
8 |
90 |
|
715.705.220 |
PC 1600 30x30x6 NIR |
800 |
8 |
90 |
|
715.704.150 |
PC 1600 30x64x10 NIR |
800 |
8 |
90 |
|
715.704.870 |
PC 1600 30x75x16 NIR |
800 |
15 |
90 |
|
715.700.350 |
PC 1600 30x110x16 NIR |
800 |
15 |
90 |
|
715.704.440 |
PC 1600 50x50x10 NIR |
750 |
20 |
90 |
|
715.707.090 |
PC 1600 50x50x10 NIR (Z) |
800 |
13 |
90 |
|
715.707.140 |
PC 1600 50x110x16 NIR |
800 |
10 |
90 |
|
715.704.880 |
PC 1600 50x110x16 NIR (Z) |
800 |
15 |
90 |
|
715.705.440 |
PC 1600 64x64x10 NIR |
1064 |
10 |
90 |
|
715.705.110 |
PC 1600 110x110x16 NIR (Z) |
800 |
8 |
90 |
|
715.704.320 |
PC 1600 110x110x16 NIR |
1053 |
10 |
90 |
|
715.704.420 |
PC 1600 120x140x20 NIR |
800 |
8 |
90 |
|
715.704.560 |
PC 1700 25x25x6 NIR |
800 |
8 |
90 |
|
715.706.240 |
PC 1700 30x30x6 NIR |
800 |
8 |
90 |
|
715.702.400 |
PC 1700 30x30x6 NIR |
1053 |
10 |
90 |
|
715.702.960 |
PC 1700 30x64x10 NIR |
800 |
30 |
90 |
|
715.702.970 |
PC 1700 30x64x10 VIS |
633 |
30 |
79 |
|
715.705.190 |
PC 1700 30x64x10 NIR |
1053 |
10 |
90 |
|
715.707.180 |
PC 1700 30x110x16 NIR (Z) |
1035 |
10 |
90 |
|
715.706.680 |
PC 1700 30x110x16 NIR (Z) |
1053 |
10 |
90 |
|
715.703.670 |
PC 1700 50x50x10 NIR |
1040 |
10 |
90 |
|
715.702.650 |
PC 1700 50x110x16 NIR |
1040 |
10 |
90 |
|
715.701.680 |
PC 1700 64x64x10 800 nm |
800 |
8 |
90 |
|
715.703.230 |
PC 1700 64x64x10 1053 nm |
1053 |
10 |
90 |
|
715.705.420 |
PC 1700 120x140x20 NIR |
1053 |
10 |
90 |
|
715.705.680 |
PC 1740 30x30x6 NIR |
1053 |
8 |
90 |
|
715.705.910 |
PC 1740 30x64x10 NIR (Z) |
1053 |
8 |
90 |
|
715.705.690 |
PC 1740 30x110x16 NIR |
1053 |
8 |
90 |
|
715.706.590 |
PC 1740 50x50x10 NIR (Z) |
1060 |
8 |
90 |
|
715.705.800 |
PC 1740 50x50x10 NIR |
1053 |
8 |
90 |
|
715.704.570 |
PC 1740 50x110x16 NIR (Z) |
1040 |
11 |
90 |
|
715.707.060 |
PC 1740 50x140x20 NIR (Z) |
1030 |
10 |
90 |
|
715.706.020 |
PC 1740 64x30x10 NIR (Z) |
1053 |
8 |
90 |
|
715.705.920 |
PC 1740 64x64x10 NIR (Z) |
1053 |
8 |
90 |
|
715.701.880 |
PC 1740 64x64x10 NIR |
1053 |
8 |
90 |
|
715.705.840 |
PC 1740 100x140x20 NIR |
1057 |
8 |
90 |
|
715.707.050 |
PC 1740 110x110x16 NIR (Z) |
1018 |
10 |
90 |
|
715.705.830 |
PC 1740 110x110x16 NIR |
1057 |
8 |
90 |
|
715.707.080 |
PC 1740 120x140x20 NIR (Z) |
1030 |
10 |
90 |
|
715.704.070 |
PC 1740 120x140x20 NIR (Z) |
1054 |
14 |
90 |
|
715.704.100 |
PC 1740 120x140x20 NIR |
1054 |
14 |
90 |
|
715.701.070 |
PC 1800 15x15x6 NIR |
800 |
8 |
90 |
|
715.705.540 |
PC 1800 15x30x6 NIR |
800 |
8 |
90 |
|
715.704.130 |
PC 1800 25x25x6 NIR |
800 |
8 |
90 |
|
715.701.140 |
PC 1800 30x30x6 NIR |
800 |
8 |
90 |
|
715.702.510 |
PC 1800 30x30x6 NIR |
1030 |
8 |
90 |
|
715.704.180 |
PC 1800 30x30x6 NIR |
1047 |
8 |
90 |
|
715.703.690 |
PC 1800 30x64x10 NIR |
800 |
8 |
90 |
|
715.702.520 |
PC 1800 30x64x10 NIR |
1030 |
8 |
90 |
|
715.703.120 |
PC 1800 30x64x10 1060 nm |
1060 |
8 |
85 |
|
715.703.010 |
PC 1800 30x110x16 800 nm |
800 |
17 |
90 |
|
715.700.450 |
PC 1800 30x110x16 NIR |
800 |
8 |
90 |
|
715.705.250 |
PC 1800 30x110x16 NIR (Z) |
800 |
8 |
90 |
|
715.702.530 |
PC 1800 30x110x16 NIR |
1030 |
8 |
90 |
|
715.704.170 |
PC 1800 30x110x16 NIR |
1047 |
8 |
90 |
|
715.700.800 |
PC 1800 50x50x10 NIR |
800 |
8 |
90 |
|
715.704.110 |
PC 1800 50x50x10 NIR (Z) |
800 |
8 |
90 |
|
715.704.280 |
PC 1800 50x50x10 NIR |
1030 |
8 |
90 |
|
715.704.490 |
PC 1800 50x50x10 NIR |
1064 |
8 |
85 |
|
715.700.600 |
PC 1800 50x110x16 NIR |
800 |
8 |
90 |
|
715.703.020 |
PC 1800 50x110x16 800 nm |
800 |
16 |
90 |
|
715.703.570 |
PC 1800 50x110x16 NIR (Z) |
800 |
16 |
90 |
|
715.704.290 |
PC 1800 50x110x16 NIR |
1030 |
8 |
90 |
|
715.704.370 |
PC 1800 50x110x16 NIR |
1053 |
8 |
82 |
|
715.705.160 |
PC 1800 50x140x20 NIR |
800 |
8 |
90 |
|
715.704.540 |
PC 1800 50x140x20 NIR |
1030 |
8 |
90 |
|
715.700.560 |
PC 1800 64x64x10 NIR |
800 |
8 |
90 |
|
715.704.380 |
PC 1800 64x64x10 NIR |
1053 |
8 |
82 |
|
715.704.220 |
PC 1800 100x140x20 NIR |
800 |
8 |
90 |
|
715.700.590 |
PC 1800 110x110x16 NIR |
800 |
8 |
90 |
|
715.704.410 |
PC 1800 110x110x16 NIR |
1054 |
8 |
82 |
|
715.701.150 |
PC 1800 120x140x20 NIR |
800 |
8 |
90 |
|
715.703.820 |
PC 1800 120x140x20 NIR (Z) |
800 |
8 |
90 |
|
715.703.270 |
PC 2000 25x25x6 NIR |
800 |
8 |
90 |
|
715.701.920 |
PC 2000 30x30x6 NIR |
800 |
8 |
90 |
|
715.701.040 |
PC 2000 30x30x6 800 nm |
800 |
8 |
90 |
|
715.700.470 |
PC 2000 30x64x10 NIR |
800 |
8 |
90 |
|
715.701.580 |
PC 2000 30x75x16 800 nm |
800 |
8 |
90 |
|
715.700.570 |
PC 2000 30x110x16 NIR |
800 |
15 |
90 |
|
715.700.920 |
PC 2000 30x110x16 NIR |
800 |
8 |
90 |
|
715.700.820 |
PC 2000 50x50x10 NIR |
800 |
8 |
90 |
|
715.701.330 |
PC 2000 50x110x16 NIR |
800 |
8 |
90 |
|
715.703.800 |
PC 2000 50x110x16 NIR (Z) |
800 |
8 |
90 |
|
715.703.630 |
PC 2000 50x110x16 NIR (Z) |
800 |
23 |
88 |
|
715.702.600 |
PC 2000 58x58x10 NIR |
950 |
8 |
90 |
|
715.700.830 |
PC 2000 64x64x10 NIR |
800 |
8 |
90 |
|
715.704.230 |
PC 2000 100x140x20 NIR |
800 |
8 |
90 |
|
715.704.270 |
PC 2000 110x110x16 NIR |
800 |
8 |
90 |
|
715.701.710 |
PC 2000 120x140x20 NIR |
800 |
8 |
90 |
|
715.705.280 |
PC 2100 25x25x6 NIR |
800 |
8 |
90 |
|
715.703.480 |
PC 2100 30x30x6 NIR |
800 |
8 |
90 |
|
715.703.040 |
PC 2100 30x64x10 NIR |
800 |
8 |
90 |
|
715.701.650 |
PC 2100 30x110x16 NIR |
800 |
8 |
90 |
|
715.702.260 |
PC 2100 50x50x10 NIR |
800 |
8 |
90 |
|
715.702.250 |
PC 2100 50x110x16 NIR |
800 |
8 |
90 |
|
715.704.360 |
PC 2200 25x25x6 NIR |
800 |
8 |
90 |
|
715.701.970 |
PC 2200 30x30x6 NIR |
800 |
8 |
90 |
|
715.705.120 |
PC 2200 30x64x10 NIR |
800 |
8 |
90 |
|
715.701.230 |
PC 2200 30x110x16 NIR |
800 |
8 |
90 |
|
715.703.360 |
PC 2200 50x50x10 NIR |
765 |
16 |
90 |
|
715.701.630 |
PC 2200 50x50x10 NIR |
800 |
8 |
90 |
|
715.703.370 |
PC 2200 50x110x16 NIR |
765 |
16 |
90 |
|
715.701.530 |
PC 2200 50x110x16 NIR |
800 |
8 |
90 |
|
715.703.810 |
PC 2200 50x110x16 NIR (Z) |
800 |
8 |
90 |
|
715.703.580 |
PC 2200 50x110x16 NIR (Z) |
800 |
15 |
88 |
|
715.703.350 |
PC 2200 100x140x20 NIR |
800 |
8 |
90 |
|
715.703.540 |
PC 2200 100x140x20 NIR |
800 |
13 |
90 |
|
715.702.560 |
PC 2200 100x140x20 NIR |
800 |
21 |
85 |
|
715.700.650 |
PC 2200 110x110x16 NIR |
800 |
8 |
90 |
|
715.703.910 |
PC 2200 120x140x20 NIR |
800 |
13 |
90 |
|
715.704.580 |
PC 2300 25x25x6 NIR |
800 |
8 |
88 |
|
715.702.850 |
PC 2300 30x30x6 NIR |
800 |
8 |
88 |
|
715.702.190 |
PC 2300 30x64x10 NIR |
800 |
8 |
88 |
|
715.701.450 |
PC 2300 30x110x16 NIR |
800 |
15 |
88 |
|
715.702.800 |
PC 2300 50x50x10 NIR |
800 |
8 |
88 |
|
715.701.990 |
PC 2400 30x30x6 NIR |
800 |
8 |
87 |
|
715.701.980 |
PC 2400 30x64x10 NIR |
800 |
8 |
87 |
|
715.701.350 |
PC 2400 30x110x16 NIR |
800 |
8 |
87 |
|
715.701.340 |
PC 2400 50x50x10 NIR |
800 |
8 |
87 |
|
715.707.640 |
PC 2400 58x58x10 NIR |
800 |
8 |
87 |
订购瑞典Spectrogon脉宽压缩光栅/超短脉冲压缩光栅(Pulse Compression Gratings)时，请参照以下格式，或从下方标准Spectrogon光栅列表中选择。
PC 1200 W x H x Thk 800 nm (TM/-1) constant deviation ≤10°
- PC是指脉冲压缩
- 1200是凹槽密度(凹槽频率)，单位：凹槽grooves/mm
- W是与光栅槽平行的基材尺寸，单位：mm
- H是与光栅槽垂直的基材尺寸，单位：mm
- Thk是毛坯料的厚度，单位：mm
- 800nm是理想的优化波长，也可指定波长范围或具有峰值波长的范围
- (TM/-1)是所需的偏振状态和衍射阶次，光栅应针对此进行优化。TE以及平均值(TM+TE)/2也可指定
- 恒定偏差10°是光栅应优化的配置，也可指定恒定入射角
标准公差：宽度W、高度H：±0.2mm，厚度Thk：±0.5mm，各尺寸体积密度CA>90%。
标准尺寸：25x25x6mm, 30x30x6mm, 30x64x10mm, 30x75x16mm, 30x110x16mm, 50x50x10mm, 50x110x16mm, 58x58x10mm, 64x64x10mm, 90x90x16mm, 110x110x16mm, 100x140x20mm, 120x140x20mm
材质：金膜(Au)，适用于λ>750nm
标准基板材料：光学冠玻璃K4A或N-ZK7
可选基板材料：零热膨胀玻璃陶瓷，表中标记为(Z)。（Lw1、Zerodur或同等材料）
其他规格的激光脉冲压缩光栅可根据需求定制，请联系我们！
